Comments (3)
Exactly the information I was looking for. Thanks a lot.
I have the diagrams created by hand working as expected. Additionally, I extended my generator to support the correct syntax.
I think it is worth to add to the README file.
Thanks for the fast answer.
from state-machine-cat.
Hi @marcelbaumann thanks for this feedback!

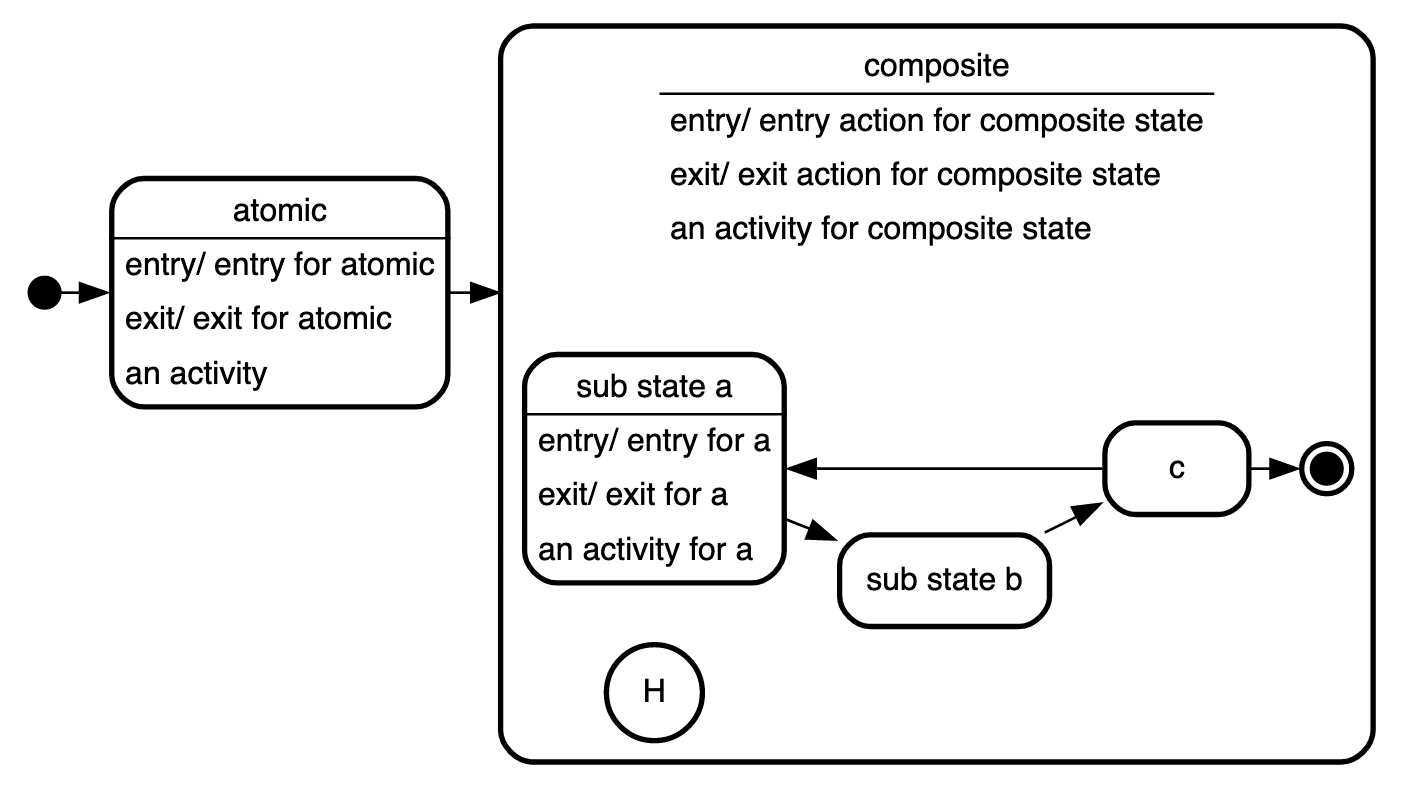

I gather you mean something like this?
You can get that with the following smcat script:
atomic:
entry/ entry for atomic
exit/ exit for atomic
an activity,
composite:
entry/ entry action for composite state
exit/ exit action for composite state
an activity for composite state
{
composite.history,
"sub state a":
entry/ entry for a
exit/ exit for a
an activity for a,
"sub state b",
c,
composite.final;
"sub state a" => "sub state b";
"sub state b" => c;
c => "sub state a";
c => composite.final;
};
initial => atomic;
atomic => composite;
From the documentation it's indeed not immediately obvious where to put these actions relative to the state machine within the composite
state. If this is what you're looking for (check?), I'll add it to the readme.
from state-machine-cat.
