- The schema provided was all in 1 table in the legacy schema, so I decided to make it Normalized, and divide up the data into its respective tables.

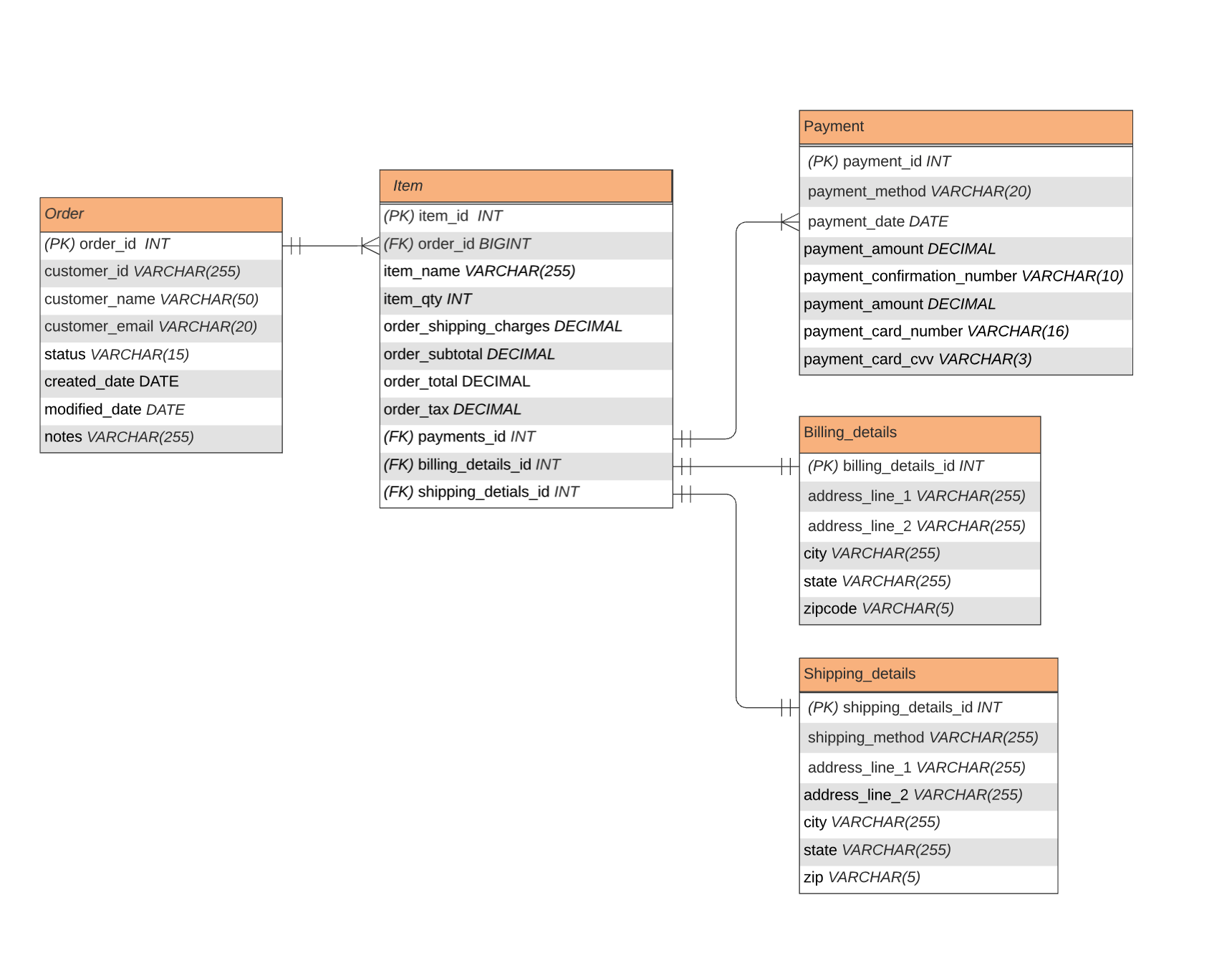

- I split the schema into 5 tables (Order, Item, Billing_details, Shipping_details, Payment) with associations defined properly to meet the requirements and be a foundation for the APIs.
- The first table is the
Order
table with Customer details (likecustomer_name
,customer_email
,customer_address
), Orderstatus
, additionalnotes
, system generatedcreated_date
, andmodified_date
as part of identifiable data and metadata living on the Order itself. - This
Order
table is connected toItem
table in a 1-to-many relationship.
Item
table hasitem_name
,item_qty
,order_shipping_charges
,order_subtotal
,order_tax
.- An item has a 1-to-1 relationship with
billing_details
table, and withshipping_details
whereas it can have multiplepayments
.
- Having a 1-to-many relationship with Item satisfies the requirement of allowing the user use multiple
payment_methods
which can be set up using a controller function to calculate the split amount using a service layer method in the future.- Also, stored is the Payment_method (which can be modified to use only Enums of values 'CreditCard', 'DebitCard' in the future),
- Along with
payment_amount
,payment_date
,payment_confirmation_number
,payment_card_number
andpayment_cvv
for now.
- There will be 1 billing detail record for an item.
- Stores details of the address the order is to billed at using fields like
address_line_1
,address_line_2
,state
,city
,zipcode
.
- There will be 1 shipping details record for an item.
- There can be more than 1
shipping_method
s based on constraints on the column in this table to check if the values are from an enum list ofIn-store pickup
,Curbside delivery
,Ship to home
,Third-party delivery
, etc. - Stores details of the address the order is to shipped at using fields like
address_line_1
,address_line_2
,state
,city
,zipcode
. - We can add a functionality to keep this the same as the billing address or vice versa as an added feature in the future.
- Install Java (SDK 14 or later) (https://www.oracle.com/java/technologies/)
- Download PostgreSQL (https://www.postgresql.org/download/)
- Download Docker (optional) (https://www.docker.com/products/docker-desktop)
- Install Postman for testing API endpoints (https://www.postman.com/downloads/)
- We use Java, SpringBoot, JPA, Hibernate, PostgreSQL, Docker, Swagger, Postman
- Open this repository in your local IDE
- Right click the root folder
order-service
in the IDE, go tomaven
thendownload sources & documentation
to install dependencies - Update the username & password in the
application.properties
file. - Note the database name as
orderservicedb
- You will need to setup the database in your PostgreSQL instance
- Open terminal and use this command to start a PostgreSQL server
sudo -u postgres psql
- You could also install the PostgreSQL GUI instead of using CLI
- Run the command to create a new database
create database orderservicedb;
- Then choose this database
\c orderservicedb;
- You can see the table definitions by

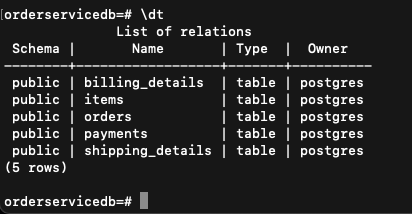

\dt
- And query to see the records in the tables going forward.
- We are also going to test our API endpoints using a REST Client like Postman.
- Open terminal and use this command to start a PostgreSQL server
- To run this application in a Docker container (Work in progress):
- Make sure
Dockerfile
anddocker-compose
are in the root directory of the main SpringBoot Application. - Use command
docker-compose up
to run our application in containarized mode. - There should be 1 instance for PostgreSQL and 1 for the SpringBoot application, and the Docker should interface between the two for us.
- Currently facing issues with connectivity on port 5432 on my local machine.
- A follow up would be to spend more time to fix this.
- Make sure
-
Firstly, deciding the schema helped in laying the foundations of the applications as per the requirements.
-
Breaking down the legacy schema into a more normalized schema will help with data maintenance, scalability, associations, and building API on top of this 5 table schema.
-
Database schema section talks about how the database requirements are met, let's talk about the microservice.
-
There is 1 microservice for Order Processing that allows RESTful clients to work with single order objects.
-
The layers in the application are as follows Controller uses Service layer, which connects to Repository layer that extends JPARepository
-
For simplicity purposes, I have implemented two controllers OrderController and ItemController and their respective service and repository classes. I've added the functionality for items to give the user the ability to add/delete items from an order. This is an assumption, and can very well be refactored if needed.
-
A follow up would be to get requirements for a way to add items inside an Order, add Payment, Shipping and Billing Details for an item, and implement the design in that way.
-
In SpringBoot, we use annotations to set up the framework to do the behind the scenes wiring for us.
-
We use @Entity while defining the entity on a modal to define a table, @Column for columns, and we can add Constraints here as well, on the datatype, size, values etc (as a follow up).
-
Mapping of OneToMany, OneToOne, and ManyToMany is also defined as per the schema discussed above.
-
All data model properties have their public getters and setters.
-
@RestController annotation is used when declaring the controller to be used as a REST resource, in this case both OrderController,and ItemController are RESTControllers.
-
Dependency Injections by means of using @Autowired is done to pull in service and repository layers in the controllers.
-
The root of the RestController is ("/api") as that is required for Swagger.
-
Our OrderController, exposes the following endpoints:
- GET: findAllOrders ("/orders"):
- This does not take any parameters, and returns a list of orders in the
Order
table.
- This does not take any parameters, and returns a list of orders in the

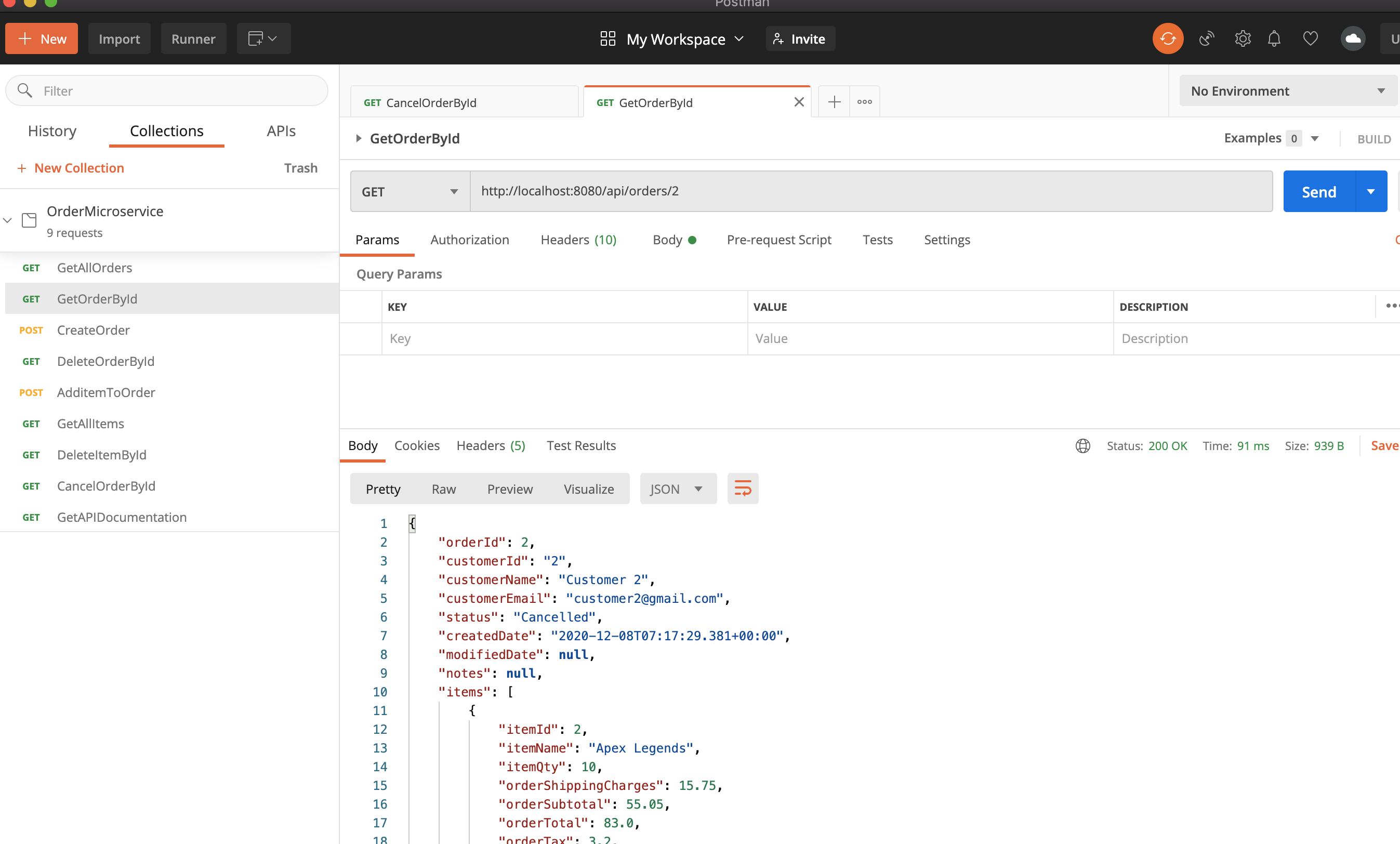

- GET: findByOrderId ("/orders/{orderId"}):
- This route takes in an
orderID
and returns the Order associated with that OrderId. Since this is the PRIMARY KEY on the table, it is already indexed for quicker reads.
- This route takes in an
- POST: createOrder ("/orders/create"):
- This takes in the RequestBody from the POST request and saves that order.
- Save method in the OrderService class, will set the
createdDate
to UTC.now using the Instant class - It will also save the
Status
on the order asRECEIVED
.

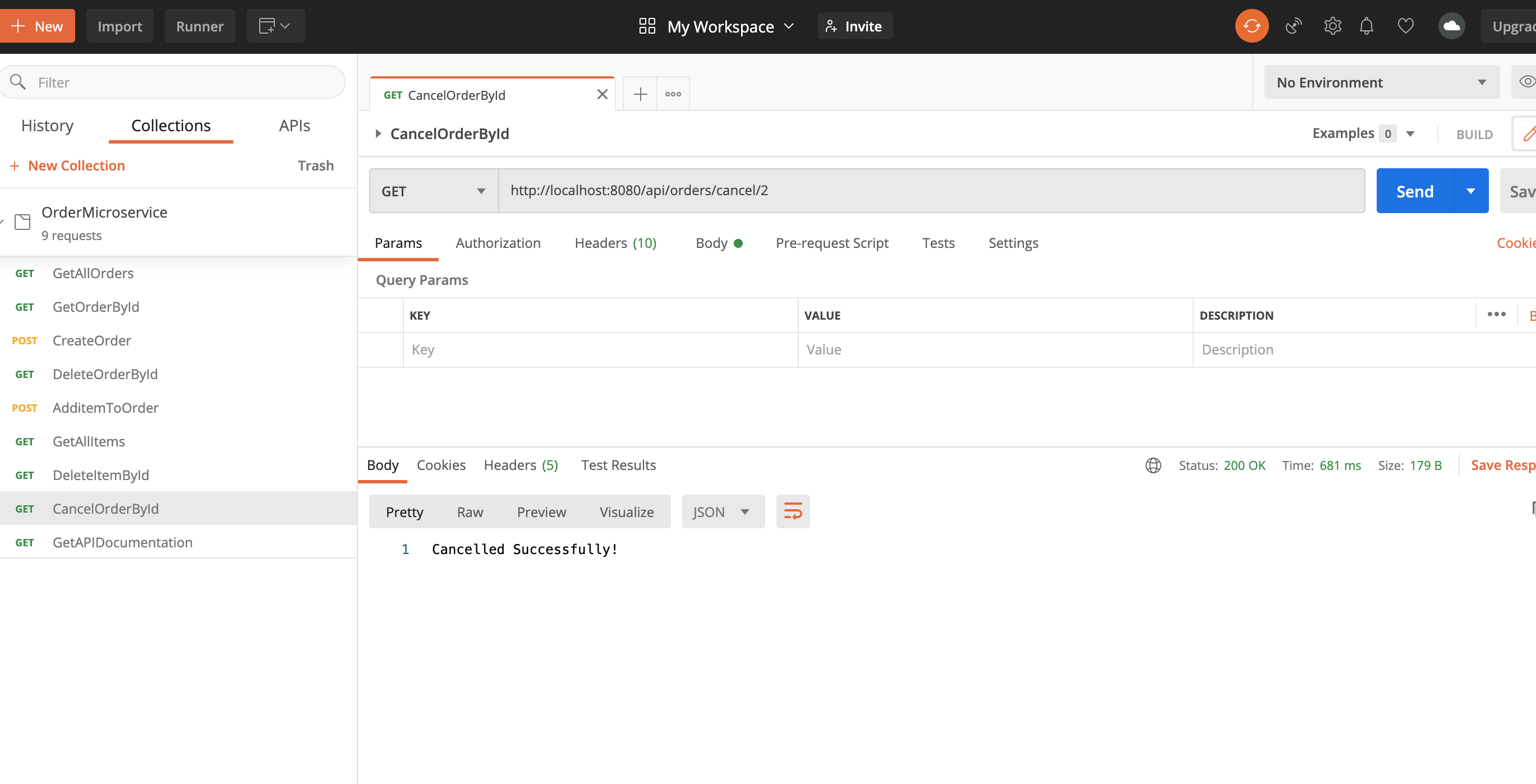

- GET: cancelOrder ("/orders/cancel/{orderId}")
- This method will update the
Status
of the existing order and set it toCANCELED
. It should throw an error if the order is not present meaning not found.
- This method will update the

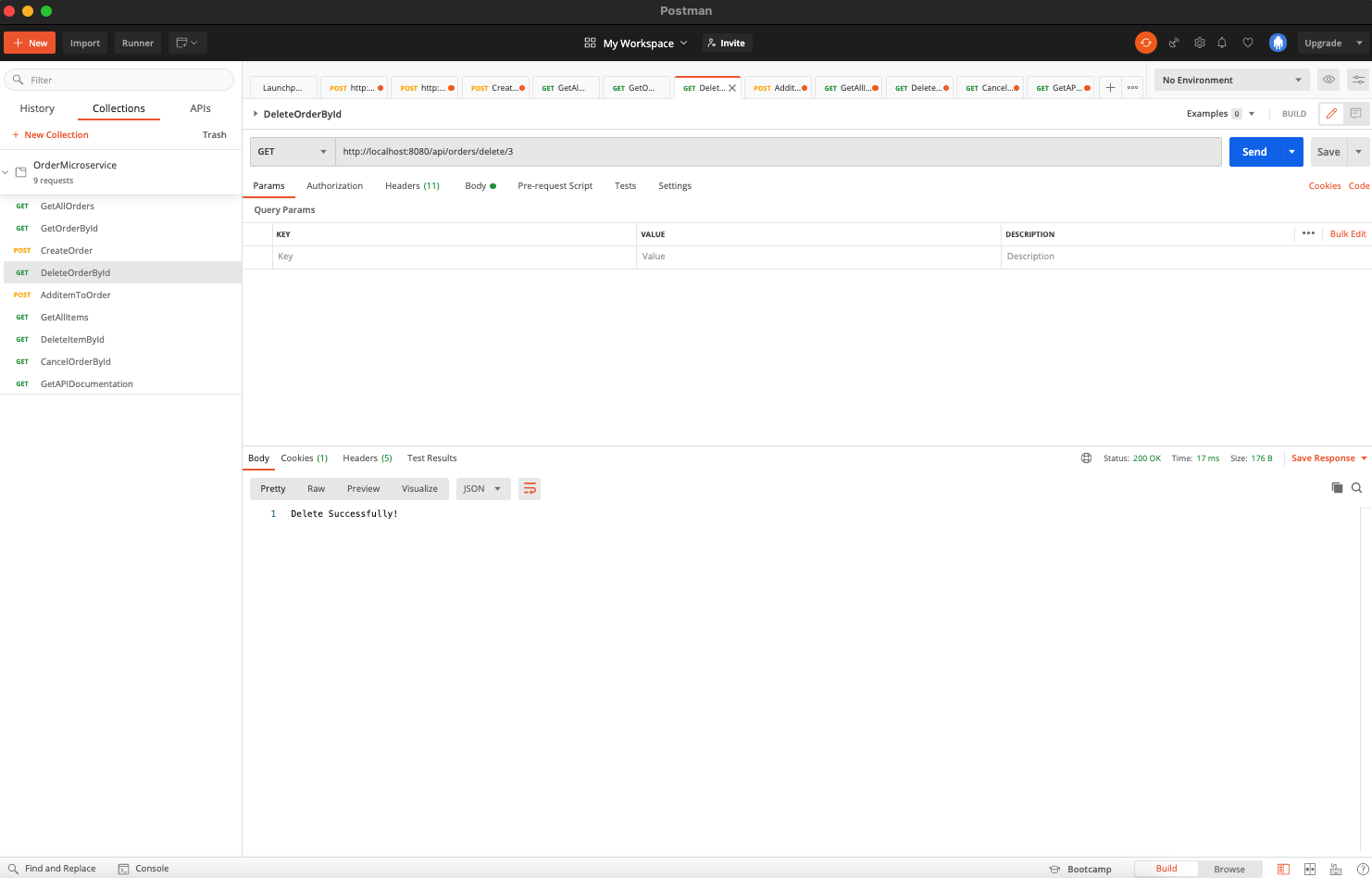

- GET: deleteOrder ("/orders/delete/{orderId}")
- This endpoint receives the orderId, looks up the order, and if it exists, deletes that order record.
- Cascade option is set to
Cascadetype.ALL
to ensure that FOREIGN KEY constraints are met and all associated records from other tables are deleted as well.
- Our ItemController, exposes the following endpoints:
- GET: findAllItems ("/items"):
- This does not take any parameters, and returns a list of items in the
Item
table. - Since there is a FOREIGN_KEY of
order_id
in Item table, we can see which item is from which order. - Again, we can have multiple Items for the same order.
- This does not take any parameters, and returns a list of items in the
- GET: getItemsByOrderId ("/items/{orderId}"):
- This route takes in an
orderID
and returns the Items associated with that OrderId. - We can have multple items in one order.
- This route takes in an
- GET: getItem ("/items/search/{itemId}"):
- This is set up in case we wish to search by
itemId
which is accepted through the parameterized URL.
- This is set up in case we wish to search by
- POST: addItemsToOrder ("/items/add/{orderId}"):
- This takes in the RequestBody from the POST request which is the Item object.
- It looks up the OrderId using the findById function of the OrderService, and if the order is present, maps this Item to that order, and saved the Item in the Item table with the associated OrderID.
- GET: deleteOrder ("/items/delete/{itemId}")
- This endpoint receives the itemId, looks up the item, and if it exists, deletes that item record.
- Cascade option is set to
Cascadetype.ALL
to ensure that FOREIGN KEY constraints are met and all associated records from other tables are deleted as well.
-
We can set up Postman Client to test our REST endpoints.
-
CreateOrder

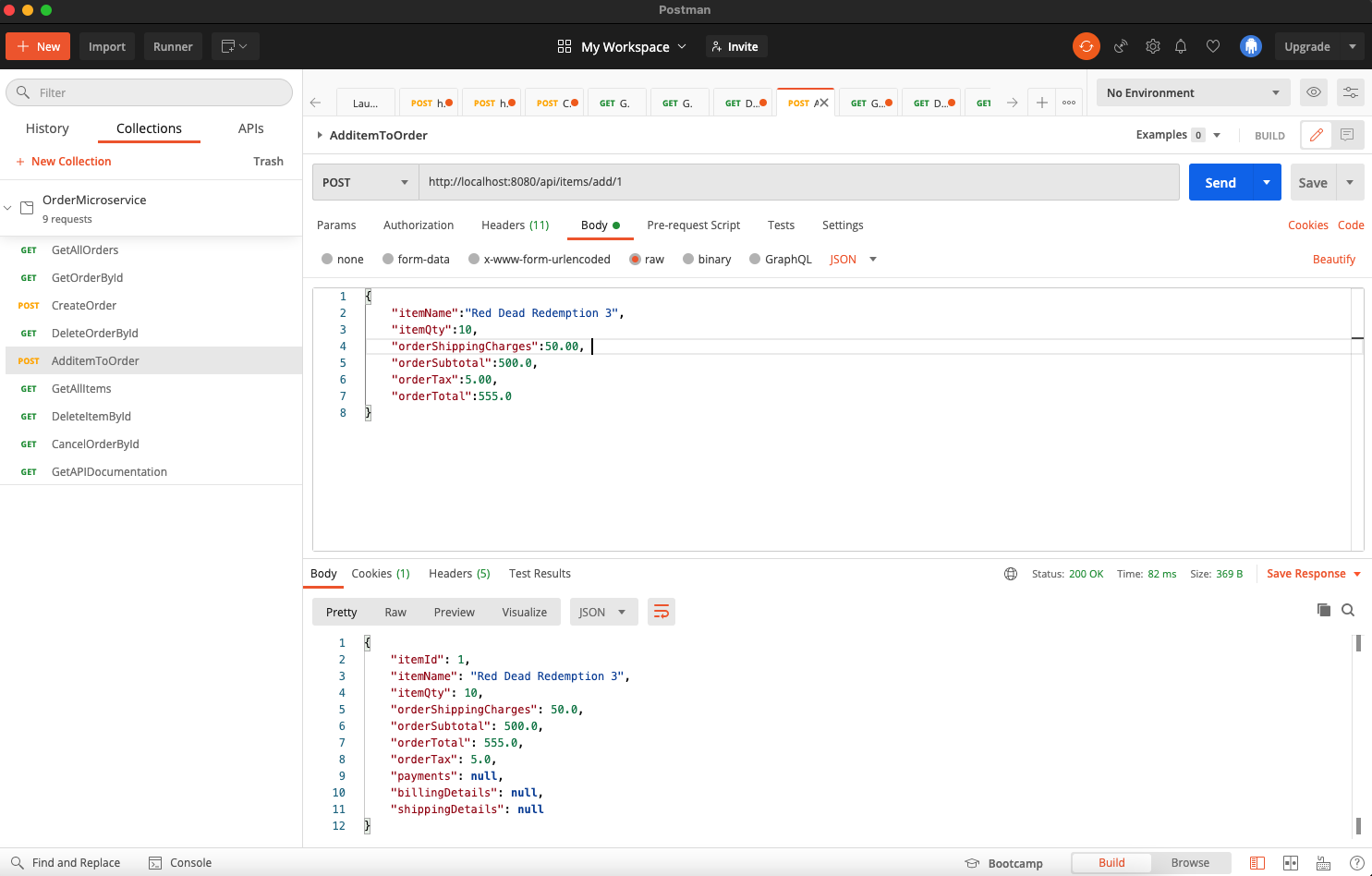

- Make sure to put the necessary fields in the Request Body like:
{
"customerId": "1",
"customerName": "Customer 1",
"customerEmail": "[email protected]"
}
- AddItemToOrder

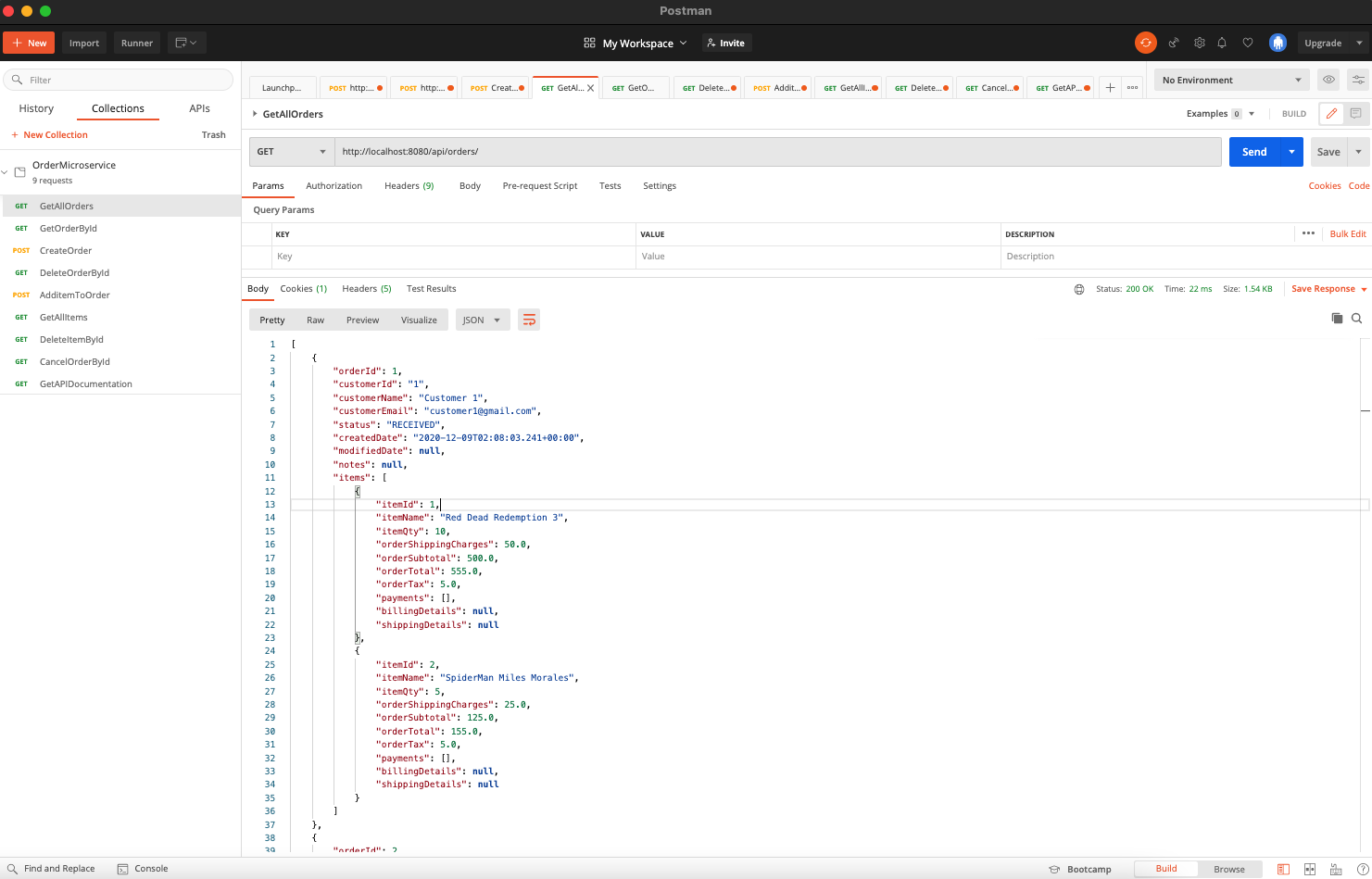

- GetAllOrders
- GetAllItems
- DeleteItemById
- CancelOrderById
- Check Cancelled order by using GetAllOrders
-
GetApiDocumentation:
- Sends a GET request to http://localhost:8080/v2/api-docs to get the Swagger generated documentation.
- An example of a CreateOrder endpoint as described by Swagger.
"/api/orders/create": { "post": { "tags": [ "order-controller" ], "summary": "createOrder", "operationId": "createOrderUsingPOST", "consumes": [ "application/json" ], "produces": [ "*/*" ], "parameters": [ { "in": "body", "name": "order", "description": "order", "required": true, "schema": { "$ref": "#/definitions/Order" } } ], "responses": { "200": { "description": "OK", "schema": { "$ref": "#/definitions/Order" } }, "201": { "description": "Created" }, "401": { "description": "Unauthorized" }, "403": { "description": "Forbidden" }, "404": { "description": "Not Found" } } } }
-

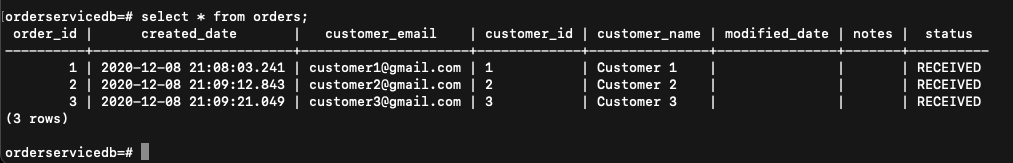

You can also test the local PostgreSQL database. Here are a few query results:
-
I've used Swagger to document all HTTP endpoints, routes, their HTTP definitions, and the data schema.
-
The package used is
springfox-boot-starter
which includes both the UI and the local route for API documentations. -
Earlier
springfox-swagger2
&springfox-swagger-ui
both were needed to be injected but the new package combines the functionalities of these two. -
You can use the request to
http://localhost:8080/v2/api-docs
in Postman or - -
Go to

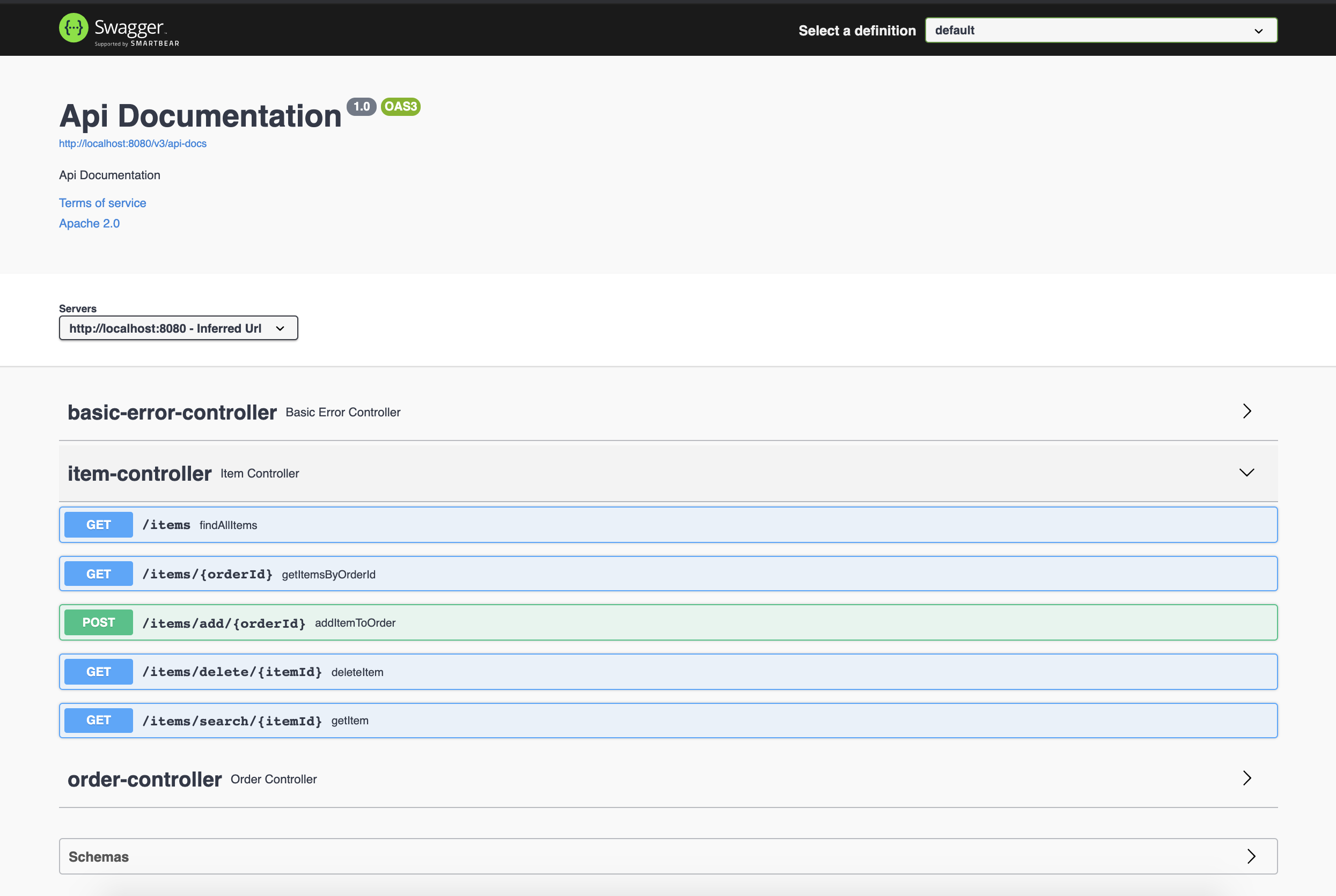

http://localhost:8080/swagger-ui/
to view and test the API endpoints as shown below -

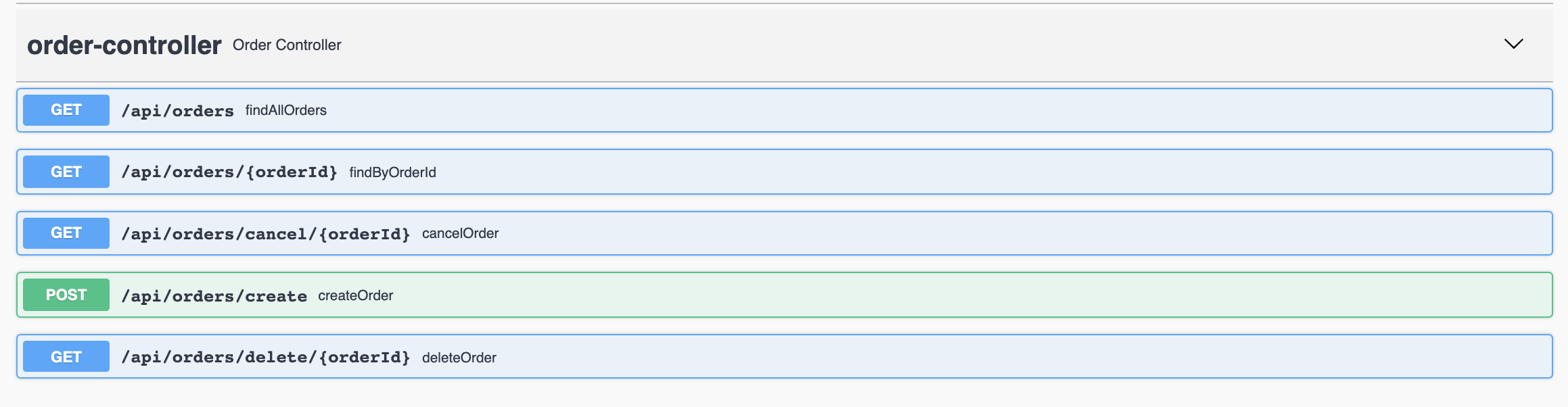

There are 2 controllers wired up: 1 is the main one for Orders and the other is to manage Items

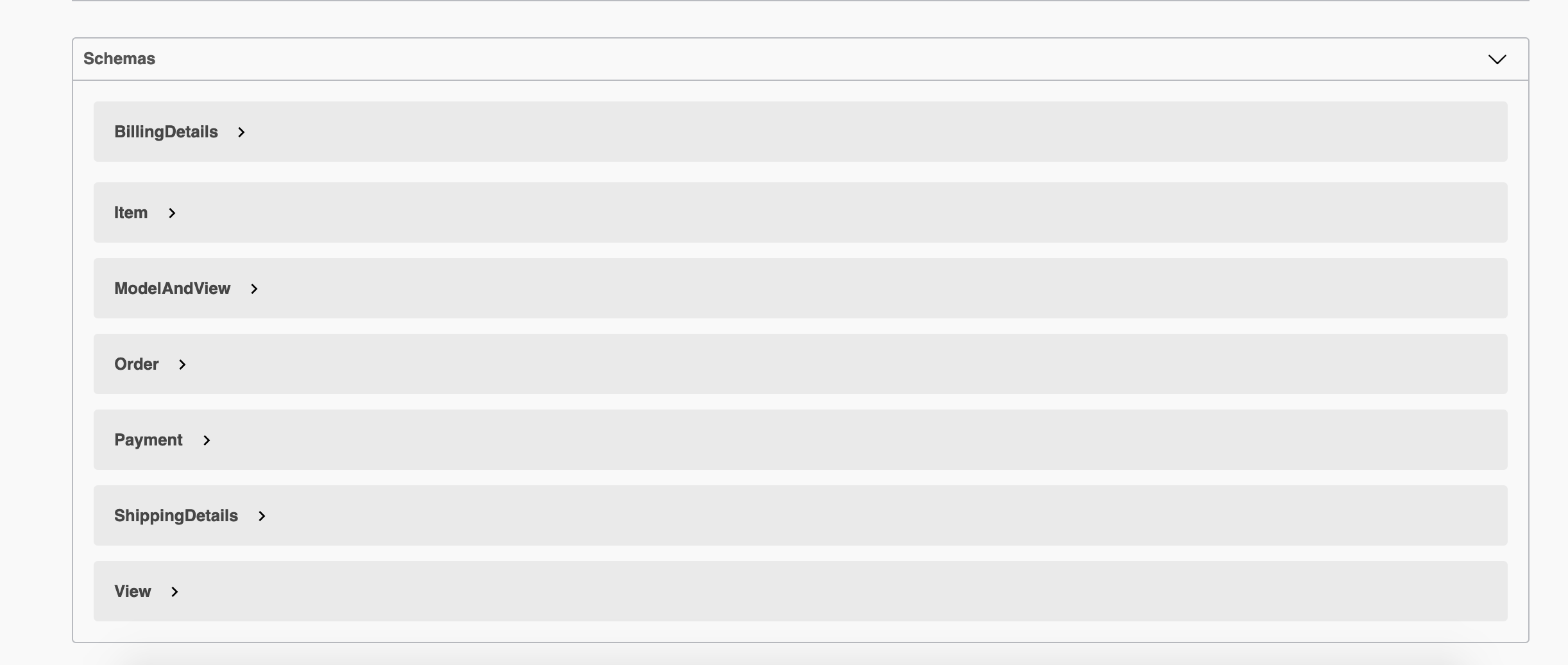

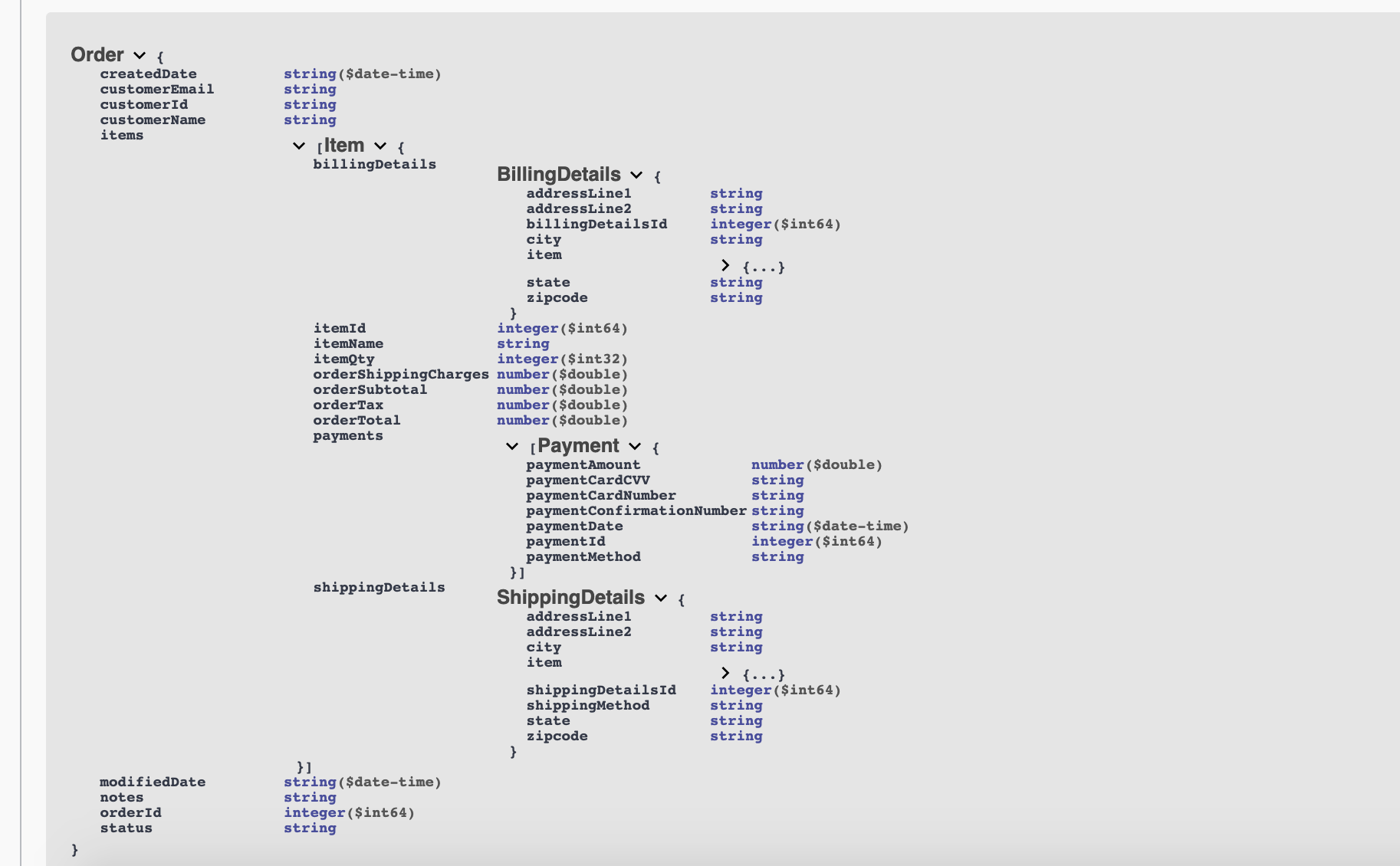

- Here is the schema of the Data Models which show that we use entire objects to be sent to their parent class.
- An order will have a List of Items, an Item will have an object of BillingDetails, ShippingDetails and a list of Payment objects.
- I added some Unit and Integration tests to test the repository and service layers
- I used mocking with MockBean, Mockito and also using @WebMvcTest approach.
- I added a test to
whenValidOrderId_thenOrderShouldBeFound
- By mocking
orderService
Bean andOrderRepository
using @MockBean, we can setup the test to check a valid order should be returned when we test the function findById on OrderRepository.
public void setUp() {
Order order = new Order(OrderId, "1", "Alex", "[email protected]");
Mockito.when(orderRepository.findById(order.getOrderId())).thenReturn(java.util.Optional.of(order));
}
@Test
public void whenValidOrderId_thenOrderShouldBeFound() {
Optional<Order> found = orderService.findByOrderId(OrderId);
assertThat(found.get().getOrderId()).isEqualTo(OrderId);
}
- Another Application test currently setup and passing is testing the GetOrders method.
- It should return a 200 HTTP OK status response, and the APPLICATION/JSON data should have a customer name matching the one in the order object that was sent.
@Test
public void givenOrders_whenGetOrders_thenReturnJsonArray()
throws Exception {
// given
Order order1 = new Order(OrderId, "1", "Alex", "[email protected]");
List<Order> allOrders = Collections.singletonList(order1);
// when
given(orderService.getAllOrders()).willReturn(allOrders);
// then
mvc.perform(get("/api/orders")
.contentType(MediaType.APPLICATION_JSON))
.andExpect(status().isOk())
.andExpect(jsonPath("$", hasSize(1)))
.andExpect(jsonPath("$[0].customerName", is(order1.getCustomerName())));
}
- I would follow up with adding more tests, and adding auto-configured tests using something like @RestClientTest.
- The tool used for Logging is from Lombok's Slf4j package dependency to help us with logging information that can be helpful while debugging and troubleshooting problems faced on stage and production servers.
- Often times, to answer queries of issue tickets from customers, we need to access logs which makes this feature very important.
- The logs display the object/variable values at the instance of logging.
- It would help in identifying records from the database quickly using
orderId
,customerId
,itemId
, etc as per these application logs. - We can also setup Azure/Dynatrace logs and monitoring when using production servers.
- Currently not set up but we can setup the local database to be inialized and auto configured with seed data for local development & testing purposes.
- As a follow up there can be a script that reset and preloads local database.
- It will need changes to the application.properties to enable hibernate and not JPA to load the schema
- Here are two snippets of what the
schema-postgres.sql
and Seed datadata-postgres.sql
look like. - Of course the files have the complete versions in them.
drop table IF EXISTS orders cascade;
create TABLE orders(
order_id serial PRIMARY KEY NOT NULL,
customer_id VARCHAR(255),
customer_name VARCHAR(50),
customer_email VARCHAR(20),
status VARCHAR(15),
notes VARCHAR(255),
created_date DATE,
modified_date DATE
CONSTRAINT chk_status CHECK (status in ('shipped','received','processing','canceled'))
);
drop table IF EXISTS items cascade;
create TABLE items(
item_id serial PRIMARY KEY NOT NULL,
order_id INTEGER,
item_name VARCHAR(255),
item_qty INTEGER,
order_shipping_charges DECIMAL,
order_subtotal DECIMAL,
order_total DECIMAL,
order_tax DECIMAL
CONSTRAINT fk_order
FOREIGN KEY(order_id)
REFERENCES orders(order_id)
ON DELETE CASCADE
);
drop table IF EXISTS shipping_details cascade;
create TABLE shipping_details(
shipping_details_id serial PRIMARY KEY NOT NULL,
item_id INTEGER,
shipping_method VARCHAR(25),
address_line_1 VARCHAR(255),
address_line_2 VARCHAR(255),
city VARCHAR(255),
state VARCHAR(255),
zipcode VARCHAR(5)
CONSTRAINT chk_shipping_method CHECK (shipping_method in ('in-store pickup','curbside delivery','ship to home','third-party delivery')),
CONSTRAINT fk_items
FOREIGN KEY(item_id)
REFERENCES items(item_id)
ON DELETE CASCADE
);
INSERT INTO orders(customer_id, customer_name, customer_email, notes, created_date)
VALUES
('1', 'Customer 1', '[email protected]', 'internal note 1', current_date)
('2', 'Customer 2', '[email protected]', 'internal note 2', current_date),
('3', 'Customer 3', '[email protected]', 'internal note 3', current_date),
('4', 'Customer 4', '[email protected]', 'internal note 4', current_date),
('5', 'Customer 5', '[email protected]', 'internal note 5', current_date);
INSERT INTO items(order_id, item_name, item_qty, order_shipping_charges, order_subtotal, order_tax, order_total)
VALUES
(1,'Witcher 3', 1, 11.75, 57.05, 3.20, 83.0),
(2,'Call of Duty', 2, 10.75, 80.05, 3.50, 100.0),
(1,'Spiderman', 1, 16.75, 97.05, 2.20, 123.5);
