fondesa / recycler-view-divider Goto Github PK

A library which configures a divider for a RecyclerView.

License: Apache License 2.0

Kotlin 99.90% Shell 0.10%

recyclerview list divider linearlayoutmanager gridlayoutmanager itemdecoration android staggeredgridlayoutmanager androidx rtl staggeredgrid staggered divideritemdecoration

recycler-view-divider's Introduction

RecyclerViewDivider

A RecyclerView's divider which can be customized with simple properties or advanced ones.

It supports:

LinearLayoutManager
GridLayoutManager
StaggeredGridLayoutManager

Usage

A basic version of the divider can be attached to a RecyclerView in these ways:

// Default configuration.
recyclerView.addDivider()

// Custom configuration.
context.dividerBuilder()
    // [...]
    .build()
    .addTo(recyclerView)

Each divider can be customized with various properties. These properties can have a common value for every divider or a specific value related to a divider instance.

For further information, check the wiki.

Compatibility

Android SDK: RecyclerViewDivider requires a minimum API level of 14 (the same of RecyclerView).

AndroidX: this library requires AndroidX. To use it in a project without AndroidX, refer to the version 2.x

Integration

You can download a jar from GitHub's releases page or grab it from mavenCentral().

Gradle

dependencies {
    implementation 'com.github.fondesa:recycler-view-divider:x.x.x'
}

recycler-view-divider's People

Contributors

Stargazers

Watchers

recycler-view-divider's Issues

Grag Item,the space will bigger and bigger

Sometimes extra space available at the top of view item

Description

Sometimes extra space available at the top of view item. I have RecyclerView inside RecyclerView. It reproduces in the inner RecyclerView.

RecyclerViewDivider version:

implementation 'com.github.fondesa:recycler-view-divider:3.1.0'

API level:

API level of my emulator 27

How to reproduce it:

I don't know how to reproduce. But the last time I compiled project everything was OK. Than send emulator to background. After about 10 minutes I came back to emulator, than I tried to expand inner recycler view item, than I saw this bug.

Sample code:

This is code of the outer RecyclerView

class GroupAdapter @Inject constructor() : RecyclerView.Adapter<GroupAdapter.GroupViewHolder>() {

    val items = ArrayList<Pair<Group, List<Service>>>()
    val icons =
        arrayListOf(R.drawable.ic_globe_1, R.drawable.ic_envelope_1, R.drawable.ic_outgoing_call)
    val viewPool = RecyclerView.RecycledViewPool()

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): GroupViewHolder {
        return GroupViewHolder(
            ViewHolderGroupBinding.inflate(
                LayoutInflater.from(parent.context),
                parent,
                false
            )
        )
    }

    override fun getItemCount() = items.size

    override fun onBindViewHolder(holder: GroupViewHolder, position: Int) {
        holder.bind(items[position], icons[position % icons.size])
    }

    inner class GroupViewHolder(val binding: ViewHolderGroupBinding) :
        RecyclerView.ViewHolder(binding.root) {
        fun bind(item: Pair<Group, List<Service>>, icon: Int) {
            binding.item = item.first
            binding.ivIcon.setImageResource(icon)

            val adapter = ServiceAdapter()
            adapter.items.addAll(item.second)
            val childLayoutManager =
                LinearLayoutManager(binding.root.context, LinearLayoutManager.VERTICAL, false)
            childLayoutManager.initialPrefetchItemCount = item.second.size
            binding.rvServices.layoutManager = childLayoutManager
            binding.rvServices.adapter = adapter
            binding.rvServices.setRecycledViewPool(viewPool)

            binding.root.context.getDrawable(R.drawable.divider_background)?.let {
                RecyclerViewDivider.with(binding.root.context)
                    .drawable(it)
                    .hideLastDivider()
                    .build()
                    .addTo(binding.rvServices)
            }

            binding.root.setOnClickListener {
                item.first.isExpanded = !item.first.isExpanded
                notifyItemChanged(adapterPosition)
            }
        }
    }
}

This is code of inner RecyclerView

class ServiceAdapter : RecyclerView.Adapter<ServiceAdapter.ServiceViewHolder>() {

    val items = ArrayList<Service>()

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): ServiceViewHolder {
        return ServiceViewHolder(
            ViewHolderServiceBinding.inflate(
                LayoutInflater.from(
                    parent.context
                ), parent, false
            )
        )
    }

    override fun getItemCount() = items.size

    override fun onBindViewHolder(holder: ServiceViewHolder, position: Int) {
        holder.bind(items[position])
    }

    class ServiceViewHolder(val binding: ViewHolderServiceBinding) :
        BaseViewHolder<Service>(binding.root) {
        override fun bind(item: Service) {
            binding.item = item
            binding.tvPrice.text = "${item.price} Coin"
        }
    }
}

GridLayoutManager topDivider

How does the top line show up? @fondesa

使用说明可以详细一些么

使用说明可以详细一些么，目前提供的使用说明不是很详细。想要使用又看不到。有这么多人收藏肯定是一个好的框架，也很希望可以运用到它。

Re-adds divider on refresh

Can you create a method of removing itemdecoration on pull to refresh? Currently when a recyclerview is refreshed it adds the divider along with the existing one.

Add .colorRes, .drawableRes methods

Hello!
Builder for RecyclerViewDivider have context, so you can add method that can make code more clean

RecyclerViewDivider.with(context).color(ContextCompat.getColor(context, R.color.divider)).build()

will be:

RecyclerViewDivider.with(context).colorRes(R.color.divider).build()

visibilityProvider is not working fine with GridLayoutMananger

Description

With multiple columns,the cell in middle column is bigger than the sidles.

RecyclerViewDivider version:
version:3.3.0
API level:

androidx:1.1.0
ANDROID_BUILD_MIN_SDK_VERSION   : 23,
ANDROID_BUILD_TARGET_SDK_VERSION: 29,
ANDROID_COMPILE_SDK_VERSION     : 29,

How to reproduce it:

Use GridLayoutManager with VERTICAL
spanCount is 3
add the divider as the follwing sample code

as the uppper steps ,it will reporduce.
remove visibilityProvider method,it works fine.

Sample code:

recycler.addItemDecoration(new DividerBuilder(getContext())
                .colorRes(R.color.transparent)
                .visibilityProvider(new VisibilityProvider() {
                    @Override
                    public boolean isDividerVisible(@NotNull Grid grid, @NotNull Divider divider) {
                        return true;
                    }
                })
                .sizeProvider(new SizeProvider() {
                    int dp16 = Tool.dimens().dp2px(16);
                    @Override
                    public int getDividerSize(@NotNull Grid grid, @NotNull Divider
                            divider, @NotNull Drawable drawable) {
                        return dp16;
                    }
                }) . build());

Stack trace:

Paste the stack trace here.

Update WIKI to Kotlin

Try JaCoCo report aggregation

https://docs.gradle.org/7.4/userguide/jacoco_report_aggregation_plugin.html

Update Android 11

add divider to top of first item in LinearLayoutManager

Add please divider to top of first item in LinearLayoutManager like in this gist
https://gist.github.com/lapastillaroja/858caf1a82791b6c1a36

One of my project has design where I need this feature. Maybe this is usefull for other also.

Fix sourceSets deprecation in CoveragePlugin

Maybe introduce a caching mechanism on DividerItemDecoration

It would be nice to find a reliable way to cache the Grid and the Divider instances used in DividerItemDecoration.getItemOffsets() and DividerItemDecoration.onDraw().

In case, add a method on DividerBuilder to toggle this feature.
Should it be enabled or disabled by default?

[Suggestion] Each item's divider has same size

Make each item's divider has same size, this is good for use ConstraintLayout's layout_constraintDimensionRatio. Otherwise, the height of each item is inconsistent
such as:

<ConstraintLayout>
    <View app:layout_constraintDimensionRatio="1:1" />
</ConstraintLayout>

val left = (lineAccumulatedSpan - 1) * size / spanCount
val right = size - lineAccumulatedSpan * size / spanCount
when {
    // LinearLayoutManager or GridLayoutManager with 1 column
    spanCount == 1 || spanSize == spanCount -> setRect(0, 0, 0, size)
    // first element in the group
    lineAccumulatedSpan == spanSize -> setRect(left, 0, right, size)
    // last element in the group
    lineAccumulatedSpan == spanCount -> setRect(left, 0, right, size)
    // element in the middle
    else -> setRect(left, 0, right, size)
}

sample:
column: 3,
divider size: 26px
your code: [0-13] [13-13] [13-0]
my code: [0-18] [8-9] [17-0]

Can SizeManager add item position?

object : SizeManager {
    override fun itemSize(drawable: Drawable, orientation: Int, groupCount: Int, groupIndex: Int): Int {
        // I want to know which item is
    }
}

Errors occur-ed while running your project library.

cannot resolve method with(),addTo(),removeFrom(). I had included gradle also. Can you please explain what is error.

Make hideLastDivider() the default visibility

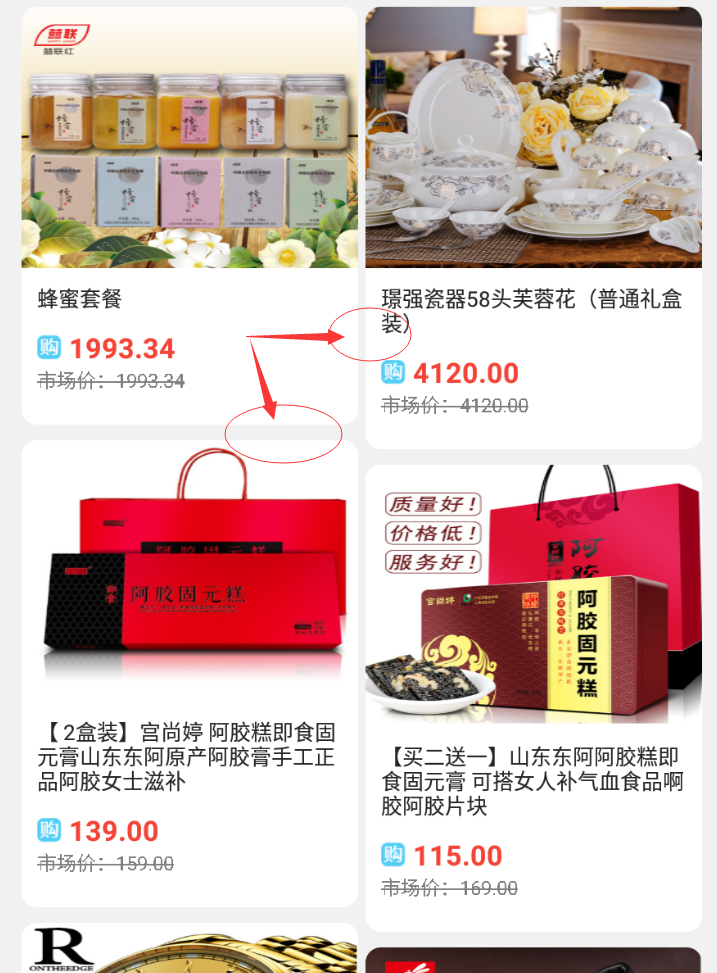

StaggeredGridLayoutManager

Horizontal and Vertical space size is not euqal.
RecyclerViewDivider.with(rv.getContext())
.insetManager(new DefaultInsetManager())
.hideLastDivider()
.size(size)
.color(ResUtils.getColor(color))
.build().addTo(rv);

Equal Spacing

Hey, how would i go about equal spacing?

I need to use a recyclerview to use the drag/move ItemTouchHelper functionality, but i would like the items to be spaced out equally in the recyclerview (match_parent) - no scrolling?

Is there a setting or how would i do this?

ItemDecoration 绘制问题

如果在 adapter 中设置 item 的背景色，divider 使用的也是背景色，会导致 item 背景色盖住 divider 的，我猜应该重写 ItemDecoration 的 onDrawOver 方法而不是 onDraw ？

The size of the divider is wrong after notifyItemRemoved()

The size of the horizontal divider will get bigger and bigger when removing items in a RecyclerView with a GridLayoutManager repeatedly.

RecyclerViewDivider version: 3.5.0

A Test Project:
MyApplication.zip

"GridLayoutManager.multipleSpanGrid" It takes too much time with a large data set

val dataList = MutableList<Any>(1000) { index ->
    A()
}

dataList.add(0, B())

val layoutManager = GridLayoutManager(requireActivity(), 3)

layoutManager.spanSizeLookup = object : GridLayoutManager.SpanSizeLookup() {
    override fun getSpanSize(position: Int): Int {
        return when (dataList.getItem(position)) {
            B -> 3
            else -> 1
        }
    }
}

requireActivity().dividerBuilder()
    .showFirstDivider()
    .showSideDividers()
    .size(8.dp)
    .asSpace()
    .build()
    .addTo(recyclerView)

Remove useless dependencies repositories

Remove deprecated APIs

All deprecated APIs must be removed.

hideFirstDivider(); changeDividerColor(int postion,int color);

Description

Hide the first line-->hideFirstDivider();
Change the color of the line-->changeDividerColor(int postion,int color);

Motivation

Add API to show the top and the bottom divider in a StaggeredGridLayoutManager

What's the Android API to detect if the item of a StaggeredGridLayoutManager is shown in the first position or not?
Consider also the span count and the full span items.
E.g.

item 0: not full span
item 1: full span
item 2: not full span

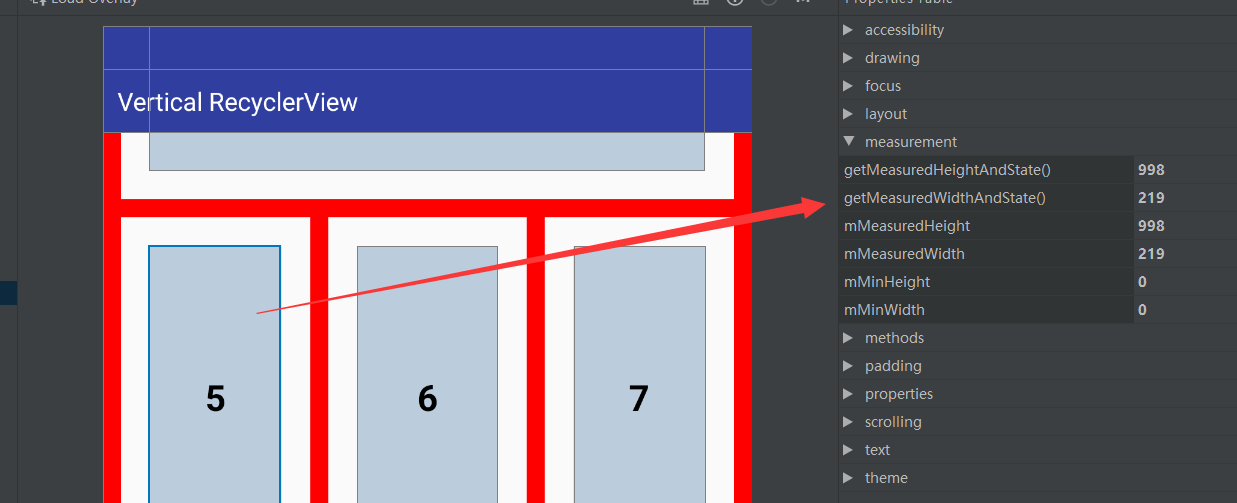

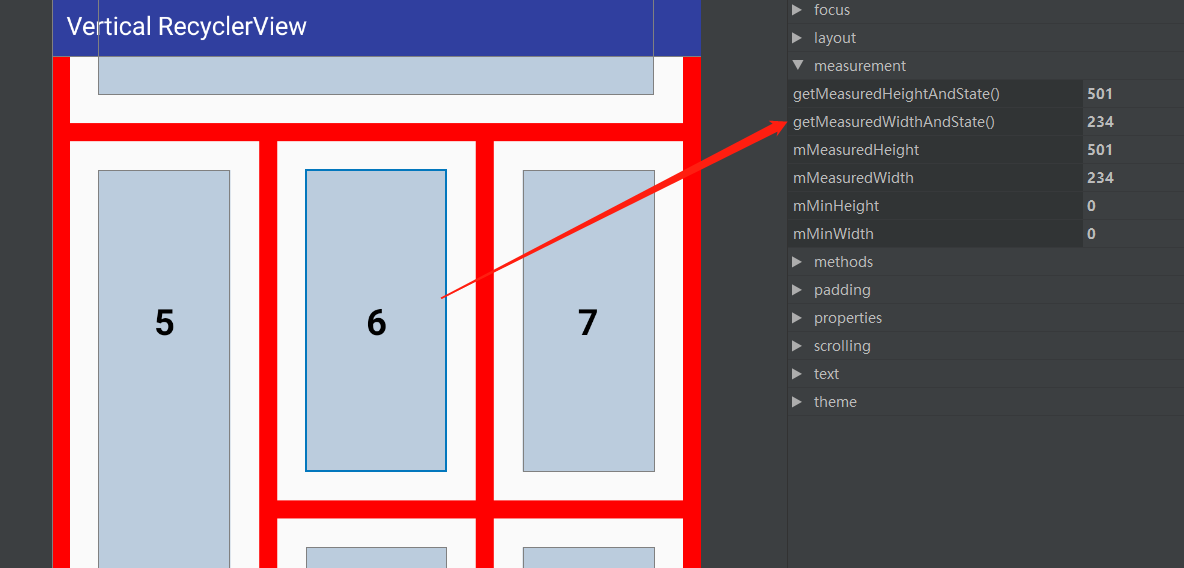

StaggeredDividerItemDecoration bug

6item is big than 5item,
for example: if i set space 10
5item offsetleft+offsetRight=10+5=15
6item offsetleft+offsetRight=5+5=10
so 6item is big than 5item

How to set float size decoration?

Sometimes the required decoration height is not an integer 。

Can the

DividerBuilder.size(size: Int, sizeUnit: Int = TypedValue.COMPLEX_UNIT_PX)

be adjusted to

DividerBuilder.size(size: Float, sizeUnit: Int = TypedValue.COMPLEX_UNIT_PX)

Run tests on Android Q

Robolectric since 4.4 supports Q

Request: use the default divider of the OS

Currently we have to do it on our own, otherwise we get a very white one.

Example of such workaround:

    obtainStyledAttributes(intArrayOf(android.R.attr.listDivider)).use { typedArray ->
        typedArray.getDrawable(0)?.let { RecyclerViewDivider.with(this).drawable(it).build().addTo(recyclerView) }
    }

Crash: The grid doesn't contain the item at position...

Description

After upgrading from v3.3.0 to v3.4.0, we received a lot about the following crashes

RecyclerViewDivider version:
v3.4.0

API level:
26,27,28,29,30

Stack trace:

java.lang.IndexOutOfBoundsException: The grid doesn't contain the item at position 48.
       at com.fondesa.recyclerviewdivider.DividersAroundCellKt.lineAndCellRelativeIndexesOf(DividersAroundCellKt.java:55)
       at com.fondesa.recyclerviewdivider.DividersAroundCellKt.dividersAroundCell(DividersAroundCellKt.java:26)
       at com.fondesa.recyclerviewdivider.DividerItemDecoration.drawDividers(DividerItemDecoration.java:113)
       at com.fondesa.recyclerviewdivider.DividerItemDecoration.onDraw(DividerItemDecoration.java:103)
       at com.fondesa.recyclerviewdivider.BaseDividerItemDecoration.onDraw(BaseDividerItemDecoration.java:105)
       at androidx.recyclerview.widget.RecyclerView.onDraw(RecyclerView.java:4494)
       at android.view.View.draw(View.java:21618)
       at androidx.recyclerview.widget.RecyclerView.draw(RecyclerView.java:4429)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at androidx.viewpager.widget.ViewPager.draw(ViewPager.java:2426)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at androidx.core.widget.NestedScrollView.draw(NestedScrollView.java:1998)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.updateDisplayListIfDirty(View.java:20474)
       at android.view.View.draw(View.java:21350)
       at android.view.ViewGroup.drawChild(ViewGroup.java:4446)
       at android.view.ViewGroup.dispatchDraw(ViewGroup.java:4205)
       at android.view.View.draw(View.java:21621)
       at com.android.internal.policy.DecorView.draw(DecorView.java:964)
       at android.view.View.updateDisplayListIfDirty(View.java:20483)
       at android.view.ThreadedRenderer.updateViewTreeDisplayList(ThreadedRenderer.java:584)
       at android.view.ThreadedRenderer.updateRootDisplayList(ThreadedRenderer.java:590)
       at android.view.ThreadedRenderer.draw(ThreadedRenderer.java:668)
       at android.view.ViewRootImpl.draw(ViewRootImpl.java:3840)
       at android.view.ViewRootImpl.performDraw(ViewRootImpl.java:3648)
       at android.view.ViewRootImpl.performTraversals(ViewRootImpl.java:2954)
       at android.view.ViewRootImpl.doTraversal(ViewRootImpl.java:1857)
       at android.view.ViewRootImpl$TraversalRunnable.run(ViewRootImpl.java:8089)
       at android.view.Choreographer$CallbackRecord.run(Choreographer.java:1057)
       at android.view.Choreographer.doCallbacks(Choreographer.java:875)
       at android.view.Choreographer.doFrame(Choreographer.java:776)
       at android.view.Choreographer$FrameDisplayEventReceiver.run(Choreographer.java:1042)
       at android.os.Handler.handleCallback(Handler.java:888)
       at android.os.Handler.dispatchMessage(Handler.java:100)
       at android.os.Looper.loop(Looper.java:213)
       at android.app.ActivityThread.main(ActivityThread.java:8178)
       at java.lang.reflect.Method.invoke(Method.java)
       at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:513)
       at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1101)

Can you support Top Divider?

Don't know if the author has plans to support it?

GridLayoutManager, spanSizeLookup, position is -1

// position == -1
// MoreViewItem is last item
spanSizeLookup = object : GridLayoutManager.SpanSizeLookup() {
    override fun getSpanSize(position: Int): Int {
        val item = adapter.items[position] // ArrayIndexOutOfBoundsException
        if (item is MoreViewItem) {
            return 2
        }
        return 1
}

// notify insert
items.add(moreViewItem)
adapter.items = items
adapter.notifyItemInserted(items.lastIndex)

java.lang.ArrayIndexOutOfBoundsException: length=108; index=-1
        at java.util.ArrayList.get(ArrayList.java:439)
        at cn.soloho.xvideos.view.HomeFragment$onActivityCreated$$inlined$also$lambda$1.getSpanSize(HomeFragment.kt:57)
        at android.support.v7.widget.GridLayoutManager$SpanSizeLookup.getSpanGroupIndex(GridLayoutManager.java:971)
        at com.fondesa.recyclerviewdivider.extension.LayoutManagerExtensionsKt.getGroupIndex(LayoutManagerExtensions.kt:70)
        at com.fondesa.recyclerviewdivider.RecyclerViewDivider.getItemOffsets(RecyclerViewDivider.kt:104)
        at android.support.v7.widget.RecyclerView.getItemDecorInsetsForChild(RecyclerView.java:4792)
        at android.support.v7.widget.RecyclerView$LayoutManager.calculateItemDecorationsForChild(RecyclerView.java:9320)
        at android.support.v7.widget.GridLayoutManager.layoutChunk(GridLayoutManager.java:590)
        at android.support.v7.widget.LinearLayoutManager.fill(LinearLayoutManager.java:1519)
        at android.support.v7.widget.LinearLayoutManager.onLayoutChildren(LinearLayoutManager.java:614)
        at android.support.v7.widget.GridLayoutManager.onLayoutChildren(GridLayoutManager.java:170)
        at android.support.v7.widget.RecyclerView.dispatchLayoutStep1(RecyclerView.java:3763)
        at android.support.v7.widget.RecyclerView.dispatchLayout(RecyclerView.java:3527)
        at android.support.v7.widget.RecyclerView.onLayout(RecyclerView.java:4082)

How to use the SizeProvider

i want to give the gridView an different spacing like Flutter that use mainAxisSpacing and crossAxisSpacing
i know i must use the SizeProvider, but i want to use the position to accumulate it, but it donnt provided

GridLayoutManager item height not equal

Description

Side divider size is 16dp
Middle divider size is 10dp

Middle item height different from others

RecyclerViewDivider version:
3.3.0

Add possibility to specify defaults programmatically

It would be useful to specify the defaults of RecyclerViewDivider programmatically.
Example:

RecyclerViewDivider.Defaults.color(Color.RED)
                 .size(context.getResources().getDimensionPixelSize(R.dimen.example))
                 .insetBefore(0)
                 .insetAfter(0);

Use android.R.attr.listDivider as the default Drawable

Related to #41

Bug: using default divider style in class that extends Application doesn't work well for dark theme

Attached sample project and video to show the issue.

The video shows before and after using the Application class.

For now, the only workaround is to do it manually, or maybe use something like this nice extension function:

fun RecyclerView.setDefaultDividers() {
    val context = this.context
    context.obtainStyledAttributes(intArrayOf(android.R.attr.listDivider)).use { typedArray ->
        typedArray.getDrawable(0)
            ?.let { RecyclerViewDivider.with(context).hideLastDivider().drawable(it).build().addTo(this) }
    }
}

My Application.zip
2019-11-09_22-25-44.zip

GridLayoutManager/StaggeredGridLayoutManager item width not equal

Description

if i use GridLayoutManager,the item width was not equal

RecyclerViewDivider version:

v3.1.0
API level:

How to reproduce it:

Sample code:

RecyclerViewDivider.with(rv.getContext())
.insetManager(new DefaultInsetManager())
.hideLastDivider()
.size(size)
.color(ResUtils.getColor(color))
.build().addTo(rv);

Can support divider on both sides of the group?

// firstMarginInGroup and lastMarginInGroup maybe added to SizeManager
if (orientation == RecyclerView.VERTICAL) {
    when {
        // LinearLayoutManager or GridLayoutManager with 1 column
        spanCount == 1 || spanSize == spanCount -> setRect(0, 0, 0, size)
        // first element in the group
        lineAccumulatedSpan == spanSize -> setRect(firstMarginInGroup, 0, halfSize, size)
        // last element in the group
        lineAccumulatedSpan == spanCount -> setRect(halfSize, 0, lastMarginInGroup, size)
        // element in the middle
        else -> setRect(halfSize, 0, halfSize, size)
    }
} else {
    when {
        // LinearLayoutManager or GridLayoutManager with 1 row
        spanCount == 1 || spanSize == spanCount -> setRect(0, 0, size, 0)
        // first element in the group
        lineAccumulatedSpan == spanSize -> setRect(0, firstMarginInGroup, size, halfSize)
        // last element in the group
        lineAccumulatedSpan == spanCount -> setRect(0, halfSize, size, lastMarginInGroup)
        // element in the middle
        else -> setRect(0, halfSize, size, halfSize)
    }
}

RTL divider not showing in Grid view

Divider now working in RTL while using GridLayoutManager.

Expose 'absoluteCellIndex'?

Sometime I need to know index of the cell

Inset doesn't seem to make sense.

var insetBefore: Int = insetManager.itemInsetBefore(groupCount, groupIndex)
var insetAfter: Int = insetManager.itemInsetAfter(groupCount, groupIndex)
if (spanCount > 1 && (insetBefore > 0 || insetAfter > 0)) {
    insetBefore = 0
    insetAfter = 0
    Log.e(TAG, "the inset won't be applied with a span major than 1.")
}

...
// 1. insetBefore and insetAfter always 0 when spanCount > 2
// 2. insetBefore and insetAfter never used when spanCount == 1

if (orientation == RecyclerView.VERTICAL) {
    when {
        // LinearLayoutManager or GridLayoutManager with 1 column
        spanCount == 1 || spanSize == spanCount -> setRect(0, 0, 0, size)
        // first element in the group
        lineAccumulatedSpan == spanSize -> setRect(0, 0, halfSize + insetAfter, size)
        // last element in the group
        lineAccumulatedSpan == spanCount -> setRect(halfSize + insetBefore, 0, 0, size)
        // element in the middle
        else -> setRect(halfSize + insetBefore, 0, halfSize + insetAfter, size)
    }
}

fondesa / recycler-view-divider Goto Github PK

recycler-view-divider's Introduction

RecyclerViewDivider

Usage

Compatibility

Integration

Gradle

recycler-view-divider's People

Contributors

Stargazers

Watchers

Forkers

recycler-view-divider's Issues

Description

Description

With multiple columns,the cell in middle column is bigger than the sidles.

Description

Motivation

Description

After upgrading from v3.3.0 to v3.4.0, we received a lot about the following crashes

Description

Description

if i use GridLayoutManager,the item width was not equal

Recommend Projects

Recommend Topics

Recommend Org
