I suspect that the implementation of spectral tracking is wrong. I have a smoke medium with 20% scattering and 80% absorption.

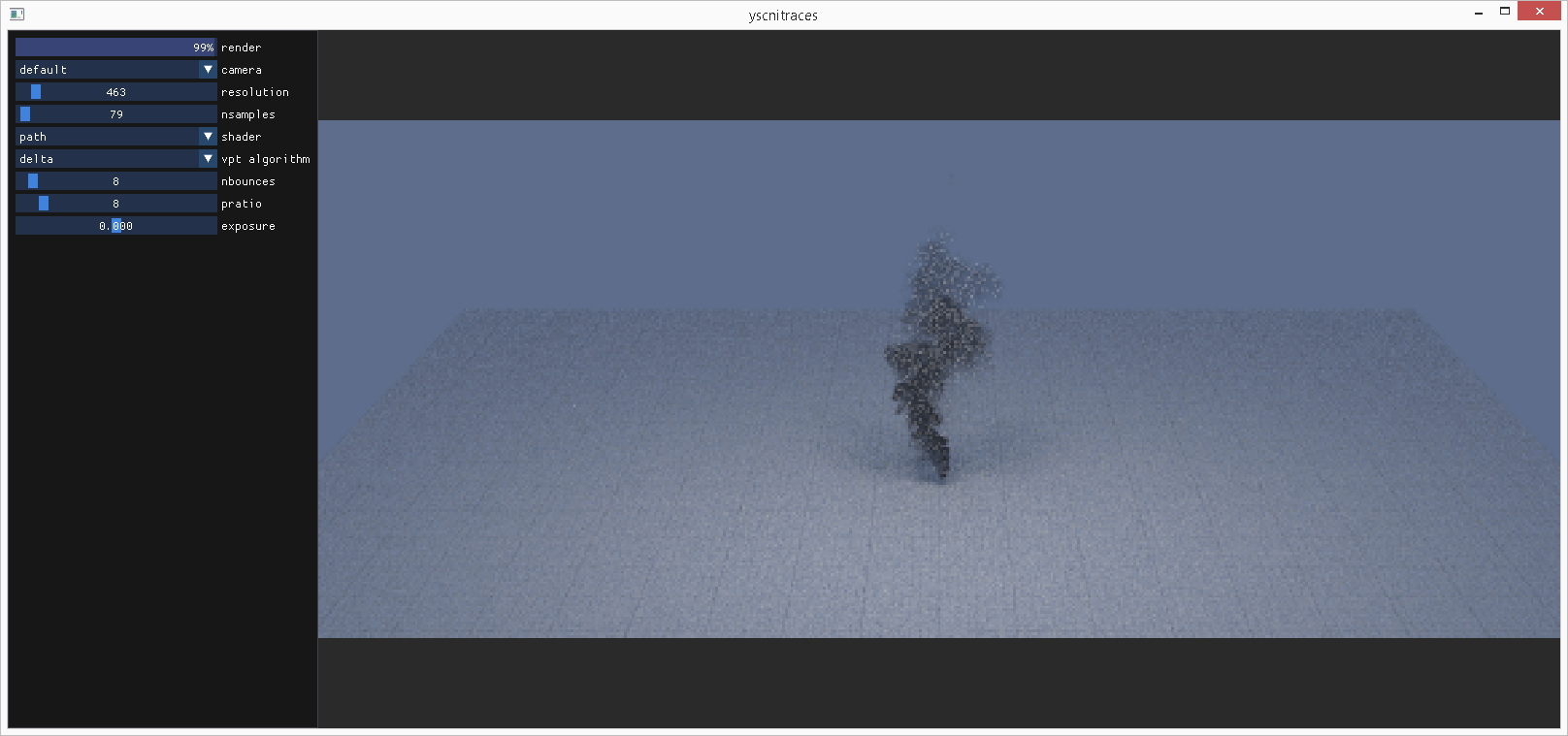

With delta tracking, I get this result.

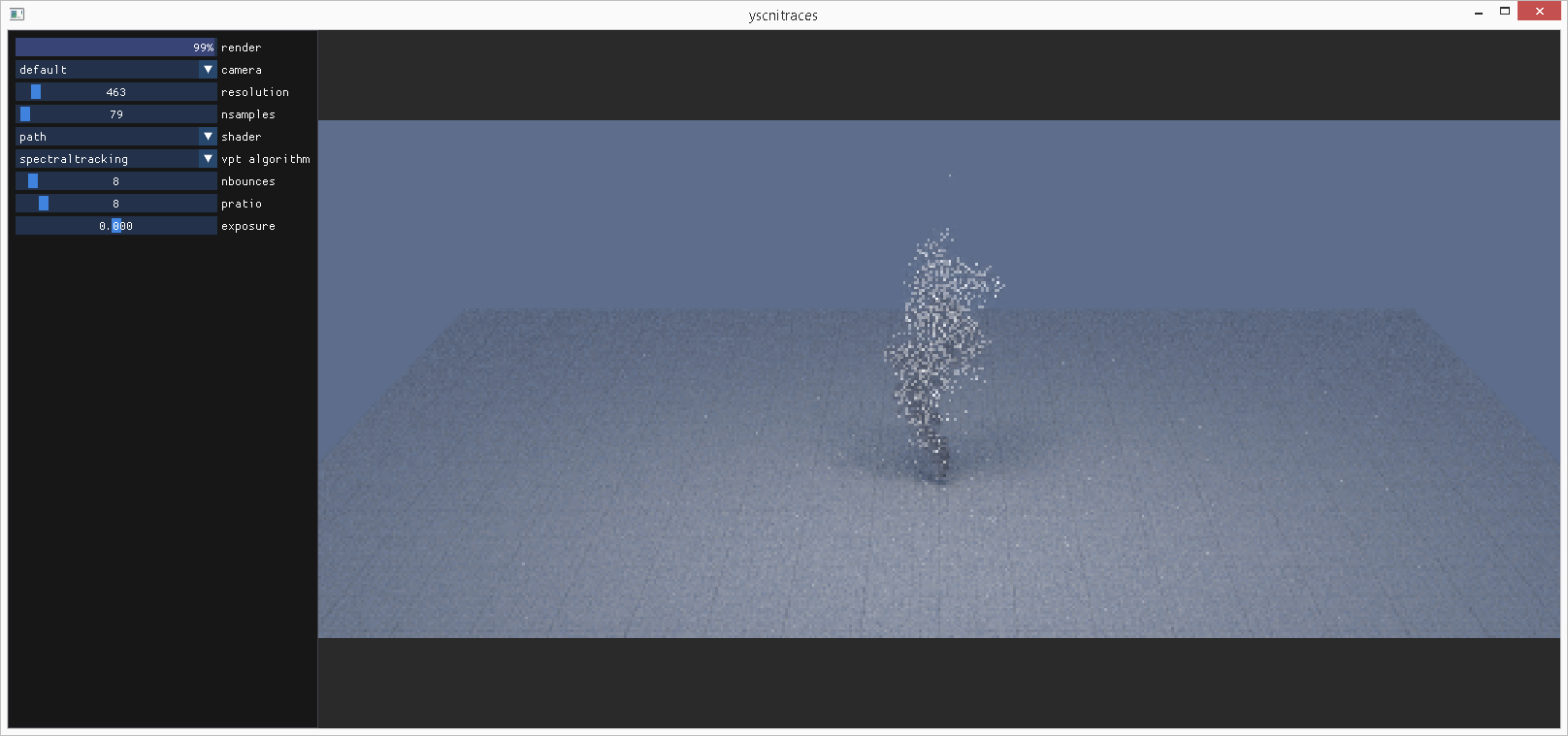

but spectral tracking gives me this result which is clearly wrong as I should get similar result as delta tracking.
I have managed to fix it. Following is my code which is as per the original spectral decomposition paper.
std::pair<float, vec3f> eval_spectral_tracking(vsdf& vsdf, float max_distance, rng_state& rng, const ray3f& ray) {
auto object = vsdf.object;
auto density_vol = object->density_vol;
auto emission_vol = object->emission_vol;
auto max_density = density_vol->max_voxel * object->density_mult;
auto majorant_density = max_density;
auto imax_density = 1.0f / max_density;
auto path_length = 0.0f;
auto tr = vec3f(1);
auto f = vec3f(1);
auto sigma_s = vsdf.scatter * max_density;
auto Ps = sigma_s * imax_density;
while (true) {
path_length -= log(1 - rand1f(rng)) * imax_density;
if (path_length >= max_distance)
break;
auto current_pos = ray.o + path_length * ray.d;
auto sigma_t = vec3f(eval_vpt_density(vsdf, current_pos));
auto sigma_n = majorant_density - sigma_t;
auto sigma_a = sigma_t - sigma_s;
auto Pt = sigma_t * imax_density;
auto Pn = sigma_n * imax_density;
auto Pa = 1.0 - Ps - Pn;
auto contrib = zero3f;
tr *= exp(-sigma_t*path_length);
if (max(Pa) > rand1f(rng)) { //ABSORPTION
contrib = sigma_a / (majorant_density * Pa);
contrib /= max(contrib);
vsdf.event = EVENT_ABSORB;
vsdf.density = sigma_t;
return { path_length, tr * contrib };
}
else if (max(Pt) > rand1f(rng)) { // SCATTER
contrib = sigma_s / (majorant_density * Ps);
contrib /= max(contrib);
vsdf.event = EVENT_SCATTER;
vsdf.density = sigma_t;
return { path_length, tr * contrib };
}
contrib = sigma_n;
contrib /= max(contrib);
f *= contrib;
}
return { max_distance, f };
}
Slight issues in the spectral MIS code. The original code treats both absorption and scattering the same as follows
if (e == EVENT_ABSORB || e == EVENT_SCATTER) {
vsdf.event = e;
vsdf.density = sigma_t;
f *= tr;
break;
}
and returns path_length, f/mean(p) for both these case. However, as per algorithm 1 in the original paper, the division is to be carried out for absorption only.
EDIT: I have made these changes and tried to reduce branches as much and following is my code. It gives the same output as the original function but its slightly faster.
std::pair<float, vec3f> eval_unidirectional_spectral_mis(vsdf& vsdf, float max_distance,
rng_state& rng, const ray3f& ray) {
auto object = vsdf.object;
auto density_vol = object->density_vol;
auto emission_vol = object->emission_vol;
auto max_density = density_vol->max_voxel * object->density_mult;
auto imax_density = 1.0f / max_density;
auto path_length = 0.0f;
auto f = vec3f(1);
auto p = vec3f(1);
auto cc = clamp((int)(rand1f(rng) * 3), 0, 2);
auto current_pos = ray.o;
auto majorant_density = max_density;
auto tr = vec3f(1);
while (true) {
path_length -= majorant_density == 0.0f ? -flt_max : log(1 - rand1f(rng)) / majorant_density;
if (path_length >= max_distance)
break;
current_pos = ray.o + path_length * ray.d;
auto sigma_t = vec3f(eval_vpt_density(vsdf, current_pos));
auto sigma_s = sigma_t * vsdf.scatter;
auto sigma_a = sigma_t - sigma_s;
auto sigma_n = vec3f(max_density) - sigma_t;
vec3f sigma[3] = { sigma_n, sigma_s, sigma_a };
tr *= exp(-sigma_t * path_length);
// Sample event
auto e = sample_event(sigma_a[cc] * imax_density, sigma_s[cc] * imax_density, sigma_n[cc] * imax_density, rand1f(rng));
if (e == EVENT_NULL)
continue;
f *= sigma[e];
p = f;
// Populate vsdf with medium interaction information and return
vsdf.event = e;
vsdf.density = sigma_t;
f *= tr;
f = f / mean(p);
break;
}
return {path_length, f };
}
HI thanks for sharing your work. I tried to add openvdb support using yovdbload but it fails to load the openvdb datasets available here. I managed to load the data myself using the latest openvdb library. Here is my code to get the openvdb data loaded using the openvdb library and dump in a bin file.
#include <yocto/yocto_cli.h>
#include <yocto/yocto_math.h>
#include <yocto/yocto_trace.h>
#include <yocto/yocto_image.h>
//openvdb includes
#include <openvdb/openvdb.h>
#include <iostream>
using namespace yocto;
static inline bool save_yvol(
const char* filename, int w, int h, int d, int nc, const float* voxels) {
FILE* fp;
fopen_s(&fp, filename, "wb");
if (!fp) return false;
auto fs_guard = std::unique_ptr<FILE, void (*)(FILE*)>{
fp, [](FILE* f) { fclose(f); } };
if (fprintf(fp, "YVOL\n") < 0) return false;
if (fprintf(fp, "%d %d %d %d\n", w, h, d, nc) < 0) return false;
auto nvalues = (size_t)w * (size_t)h * (size_t)d * (size_t)nc;
if (fwrite(voxels, sizeof(float), nvalues, fp) != nvalues) return false;
return true;
}
int main(int argc, char** argv)
{
if (argc != 2)
{
std::cout << "Usage: TestOpenVDB.exe [OpenVDB filename]" << std::endl;
}
else
{
openvdb::initialize();
openvdb::io::File file(argv[1]);
file.open();
openvdb::GridBase::Ptr baseGrid;
for (openvdb::io::File::NameIterator nameIter = file.beginName(); nameIter != file.endName(); ++nameIter)
{
if (nameIter.gridName() == "density")
{
baseGrid = file.readGrid(nameIter.gridName());
}
else
{
std::cout << "Ignoring Grid: " << nameIter.gridName() << std::endl;
}
}
openvdb::FloatGrid::Ptr grid = openvdb::gridPtrCast<openvdb::FloatGrid>(baseGrid);
int min_x = 10000;
int min_y = 10000;
int min_z = 10000;
int max_x = -10000;
int max_y = -10000;
int max_z = -10000;
// Print all active ("on") voxels by means of an iterator.
for (openvdb::FloatGrid::ValueOnCIter iter = grid->cbeginValueOn(); iter; ++iter)
{
openvdb::Coord xyz = iter.getCoord();
min_x = min(min_x, xyz.x());
min_y = min(min_y, xyz.y());
min_z = min(min_z, xyz.z());
max_x = max(max_x, xyz.x());
max_y = max(max_y, xyz.y());
max_z = max(max_z, xyz.z());
}
file.close();
std::cout << "Input: " << argv[1] << std::endl;
std::cout << "BB bounds: (" << min_x << ", " << min_y << ", " << min_z << ")" << std::endl;
std::cout << "BB bounds: (" << max_x << ", " << max_y << ", " << max_z << ")" << std::endl;
min_x = fabs(min_x);
min_y = fabs(min_y);
min_z = fabs(min_z);
max_x = max_x + min_x + 1;
max_y = max_y + min_y + 1;
max_z = max_z + min_z + 1;
std::cout << "BB bounds after shift: (" << max_x << ", " << max_y << ", " << max_z << ")" << std::endl;
std::vector<float> odata(max_x * max_y * max_z, 0.0f);
for (openvdb::FloatGrid::ValueOnCIter iter = grid->cbeginValueOn(); iter; ++iter)
{
openvdb::Coord xyz = iter.getCoord();
odata[(xyz.z() + min_z) * max_y * max_x + (xyz.y() + min_y) * max_x + (xyz.x() + min_x)] = *iter;
}
std::string output = argv[1];
output = output.substr(0, output.find_last_of(".")) + ".bin";
save_yvol(output.c_str(), max_x, max_y, max_z, 1, odata.data());
std::cout << "Volume file saved ["<< output << "]";
}
return 0;
}
I was wondering why cant we simply load the openvdb file directly instead of generating an intermediate (.bin) file? I notice that openvdb data is highly compressed so we can sort of uncompress data from openvdb on demand before handing it to yocto pathtracer?
