Hi!!!
I was using the lib, on a windows platform
I made a Map File version for windows, if you want to use it, feel free to use it.
The only problem that you need to allocate space for the file and if this file is very large, read it in chunks
The code has been tested

 char *g_pData=NULL;//Global data  free It later

static const char* mmap_fileWIN(size_t* len, const char* filename)
{
	HANDLE hfile =
		CreateFile(filename, GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING,
		FILE_ATTRIBUTE_NORMAL | FILE_FLAG_SEQUENTIAL_SCAN, NULL);
	if(hfile == INVALID_HANDLE_VALUE)
	{
		printf("Erro:mmap_file   CreateFileA=INVALID_HANDLE_VALUE of %s \n",filename);
		printf("Could not open %s file, error %d\n", filename, GetLastError());
		return NULL;
	}

	DWORD dwsize = GetFileSize( hfile, NULL);
	if (dwsize == 0xFFFFFFFF)
	{
		printf("Error:map_file Getfilesize 0xff\n");
		return NULL;
	}
	g_pData = (char*)malloc(dwsize);
        if(g_pData ==NULL)
                return NULL;

	HANDLE hFileMapping = CreateFileMapping(hfile, NULL, PAGE_READONLY, 0, 0, NULL);
	if(hFileMapping == INVALID_HANDLE_VALUE)
	{
		printf("Erro:mmap_file   CreateFileMapping=INVALID_HANDLE_of %s \n",filename);
		return NULL;
	}
	int iPos = 0;
	const unsigned int BlockSize = 128 * 1024;
	while(iPos < dwsize)//Read chunk of data
	{
		int iLeft = dwsize - iPos;
		int iBytesToRead = iLeft > BlockSize ? BlockSize: iLeft;

		void *rawBuffer = MapViewOfFile(hFileMapping, FILE_MAP_READ, 0, iPos, iBytesToRead);
		if(rawBuffer!=NULL)
		{
			memcpy(&g_pData[iPos], rawBuffer, iBytesToRead);
			UnmapViewOfFile(rawBuffer);
		}
		else
		{
			UnmapViewOfFile(rawBuffer);
			break;
		}
		iPos += iBytesToRead;
	}
	*len = dwsize;
	if(iPos!=0)
		return &g_pData[0];
	return NULL;
}

Hi,

Well firstly I am very grateful to the developers of the C version of Tinyobjloader, and Tinyobjloader itself being a real lifesaver.
So I've been experimenting the library for my own usage, and recently started to add materials support to my program. However, it looks like the Hashmap implementation that handles the material IDs is broken, as it firstly work well with like 1500 triangles, but then returns a large random number that doesn't seem correct.

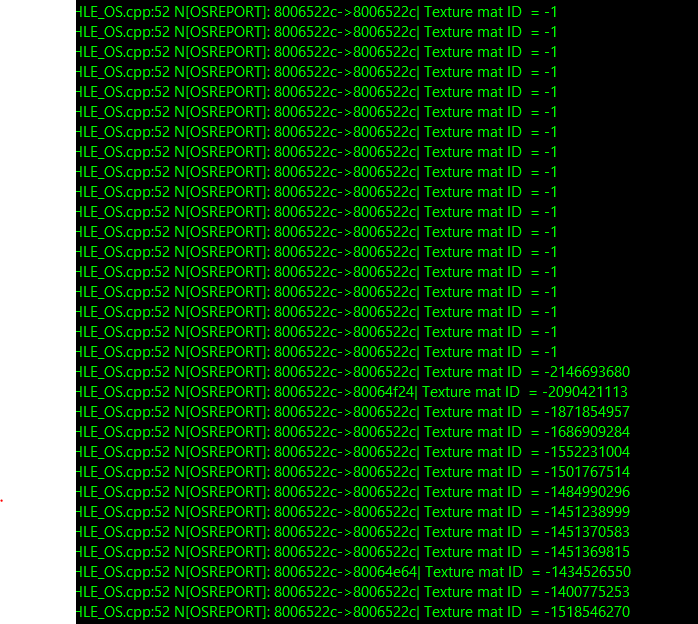

It happened on 2 different models, with relatively low numbers of materials (2 and 6), and so by printing printf("Texture mat ID = %d\n", attrib.material_ids[face_offset + 1]); on every triangle, and at some (random) point in a middle of a shape, the material_id starts to behave strangely:

I hope this can be fixed, and I would to thank you very much for all what have been already done :)

See issue raysan5/raylib#1374 for more detailed information.

The code correctly computes a negative exponent, but in the final 'assemble' section negative exponents are not handled.

strlen() on non null terminated string:

Hi this is an amazing repo.
Is there any obj-to-gltf example? Thanks.

for atoi function really hard to check errors, because it returns integer for input params, so you can't check it for bad input. You can use sscanf(buf, "%d", &n) to get integer from string and return value will be != 1 if there is problems.

When constructing a null terminated version of the material name, the last character is being overwritten due to wrong character index being used .
Line 1379:
material_name_null_term[commands[i].material_name_len-1] = 0;
should be
material_name_null_term[commands[i].material_name_len] = 0;

We need to choose more better name for these variables.

Currently,

num_face = the number of f lines
num_face_num_verts = length of face_num_verts.

Each face_num_verts contains the number of vertices of a primitive(face). (e.g. 3(triangle), 4(quads))

If we dont triangulate face(primitive), num_face == num_face_num_verts.

Memory is allocates for line_infos by get_line_infos, but the memory is never free'd.

Adding TINYOBJ_FREE(line_infos); at the end if the function solves this.

Currently max bytes per line are limited to 8192.

Support arbitrary bytes per line.

The STB style is good, but it's incomplete. There should be an option to provide file data without <stdio.h>and memory allocation without malloc()/realloc()/free(). See the STB libraries for examples.

If the face is the last line in the file, it doesn't get added.

v 0.500000 -0.500000 -0.500000
v 0.500000 -0.500000 0.500000
v -0.500000 -0.500000 0.500000
v -0.500000 -0.500000 -0.500000
v 0.500000 0.500000 -0.500000
v 0.500000 0.500000 0.500000
v -0.500000 0.500000 0.500000
v -0.500000 0.500000 -0.500000
vn 0.0000 -0.5000 0.0000
vn 0.0000 0.5000 0.0000
vn 0.5000 0.0000 0.0000
vn -0.0000 -0.0000 0.5000
vn -0.5000 -0.0000 -0.0000
vn 0.0000 0.0000 -0.5000
s off
f 1//1 2//1 3//1 4//1
f 5//2 8//2 7//2 6//2
f 1//3 5//3 6//3 2//3
f 2//4 6//4 7//4 3//4
f 3//5 7//5 8//5 4//5
f 5//6 1//6 4//6 8//6

Renders in the viewer like this:

Not an issue per se, but I just wanted to get an update on some of the contributors' plans for completing this.

Scanning through the code, it seems like the thing that needs to be done to wrap up the material loading is mapping material IDs for each face. Is it worth implementing a hashmap right in the file, or should it suffice to just keep a list of hashed material names that you search through linearly?

Are the returned values for attrib.num_face_num_verts and attrib.num_faces swapped ?
Loading a simple object that has only a cube and a plane I get
attrib.num_face_num_verts = 14
attrib.num_faces = 42

There are 7 square faces, so 14 triangles, each with 3 vertices, so
attrib.num_face_num_verts = 42
attrib.num_faces = 14
would seem more sensible values.

When compiling with gcc with -Wall -Werror, I got:

In file included from src/shared/util/tinyobj.cpp:3:0:
lib/tinyobjloader-c/tinyobj_loader_c.h: In function 'int tinyobj_parse_obj(tinyobj_attrib_t*, tinyobj_shape_t**, size_t*, tinyobj_material_t**, size_t*, const char*, size_t, unsigned int)':
lib/tinyobjloader-c/tinyobj_loader_c.h:1393:23: error: invalid conversion from 'void*' to 'tinyobj_shape_t*' [-fpermissive]
     (*shapes) = malloc(sizeof(tinyobj_shape_t) * (n + 1));
                 ~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
make: *** [Makefile:187: build/client/util/tinyobj.o] Error 1

Will send PR in a moment.

On windows and with VS, reading the texture name return a carriage return, texture cannot be properly loaded in some cases.

https://github.com/syoyo/tinyobjloader-c/blob/master/examples/viewer/trackball.c#L177

here you end up doing a asin and then a sin and cos on the result.

However to get a quaternion that rotates from one direction v1 to another v2 you only need to do

float q[4];
vnorm(v1);
vnorm(v2);
q[3]  = vdot(v1, v2) +1;
vcross(v1, v2, q);
normalize_quat(q);

The plus 1 on the dot product is to get the quaternion representing the half rotation than when you would take just the dot and cross.

On the note of normalize: the magnitude you are dividing with should be the sqrt of the dot product with itself.

You can also opt to not do the normalize of the quaternion (and spare the sqrt) and adjust the matrix generation by dividing each q[...] * q[...] with q[0] * q[0] + q[1] * q[1] + q[2] * q[2] + q[3] * q[3]

I attempted to load an OBJ file with tinyobj_parse_obj from gordon/gordon.obj. It contains an MTL file, gordon/gordon.mtl. The reading failed and I got the following output:

open: No such file or directory
TINYOBJ: Failed to parse material file 'gordon.mtl^M': -2

Not sure what the first line is. Maybe an error on my side.
I believe the ^M is a carriage return as it displays in Vim. I don't know why that's there as it's in the file name. I believe it also misses that gordon.mtl is in gordon/. I know there is a branch that fixes this.

I have no idea why GLEW does not initialize properly (Debian 10), I'm using glew for my other projects and everything is working just fine. In the meantime i replaced GLEW with glad

https://glad.dav1d.de/ (Opengl 2.0 compatibility mode)

and that solve the issue. Can I contribute my modyfication of the vewer example ? it's one dependency less.

buf hold the readed file content, but no place to free it.

The code uses in-loop initializers (i.e. for int x...) and C++ comments,
so it is not pure C89 code. It is C99-style code.

The hash_table_insert_value hits an infinite loop if the capacity is 10 and the start_index is 9, the (i*i) addition doesn't produce every possible index and in my case unfortunately it so happens that every index it produces were filled, here is a simple log:

|| ===============
|| start index 9 index 9
|| i : 1) new index 0
|| i : 2) new index 3
|| i : 3) new index 8
|| i : 4) new index 5
|| i : 5) new index 4
|| i : 6) new index 5
|| i : 7) new index 8
|| i : 8) new index 3
|| i : 9) new index 0
|| ===============

here are the files to reproduce this:
car.zip

changing i*i to a simple i fixes this.

No clue if it has been reported before.

Hello!

This is a nice library, but I had a bit of trouble using it because I didn't quite understand what was contained in the main data structures.

In my opinion, that is the most important thing to document.

For instance: the members in 'tinyobj_attrib_t' struct could use some comments.
In particular, the members: 'num_faces', 'num_face_num_verts', 'faces' and 'face_num_verts'.
What are their relationships, and how they are affected by the TINYOBJ_FLAG_TRIANGULATE flag?

I have an obj and mtl file exported from blender in a directory, and I'd like to read them both.
I'm using tinyobj_parse_obj for this, which takes the .obj file as a char * as input. However, one of the commands in the file is mtllib <filename>.mtl, which it tries to read, and fails, since the files aren't in the same directory as the executable. Since tinyobj_parse_obj doesn't know anything about the location of the obj file it would be unable to locate the .mtl file, since I assume mtllib is supposed to give a relative path.

Is this a bug, or is there some way of handing this?
